Components and Components Location: Components

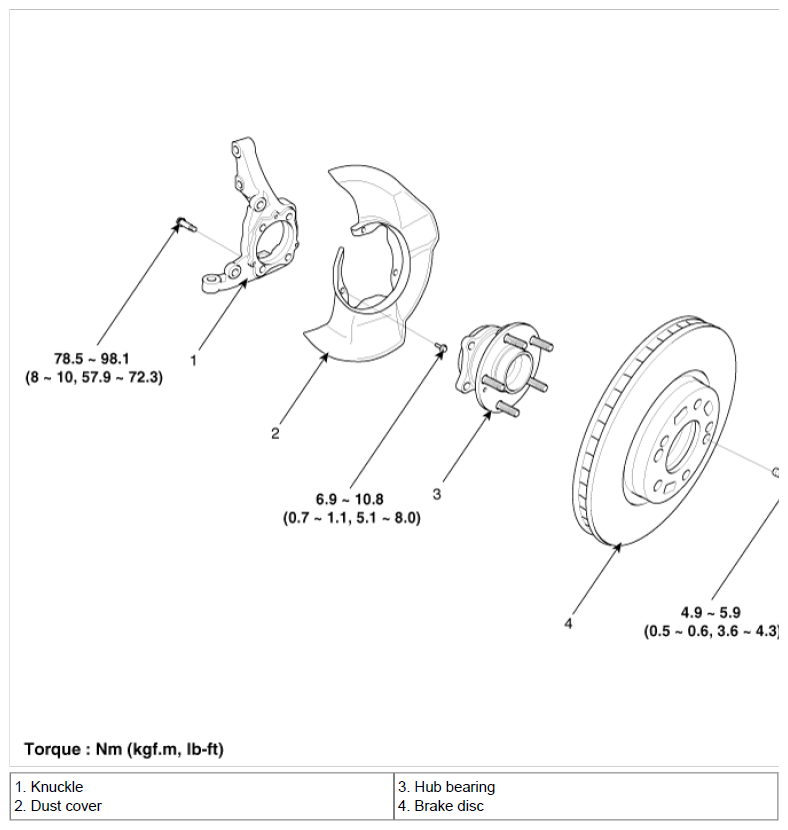

Fig 1: Exploded View Of Front Hub With Torque Specifications

G06847038

Courtesy of HYUNDAI MOTOR CO.
