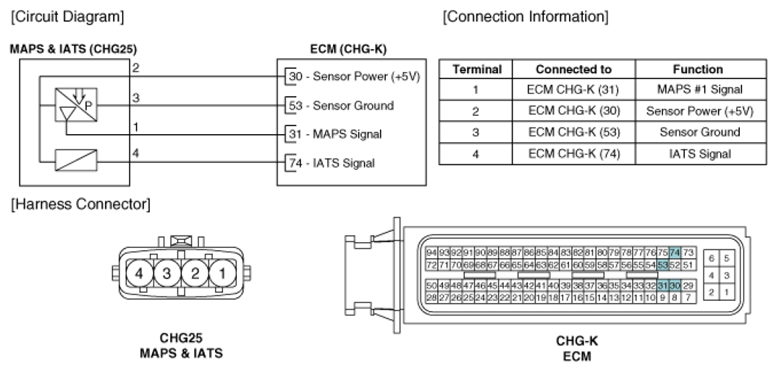

Home >> Hyundai >> 2012 >> Santa Fe GLS, 2.4L Eng VIN B, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - G2.4 DOHC >> Intake Air Temperature Sensor (IATS) >> Schematic Diagrams >> Circuit Diagram
