Home >> Hyundai >> 2012 >> Genesis Coupe 3.8 Track, Standard Trans >> Repair and Diagnosis >> Brakes >> Traction Control >> Electronic Stability Control (ESC) System >> DTC C1260: Steering Angle Sensor Circuit-Signal >> Signal Waveform & Data

Signal Waveform & Data

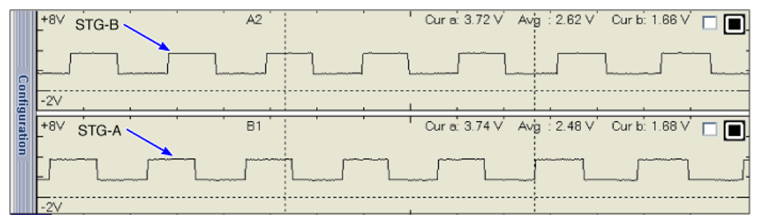

Fig 1: Normal Waveform Pattern At Turning Steering Wheel Into Left
G06513379Courtesy of HYUNDAI MOTOR CO.

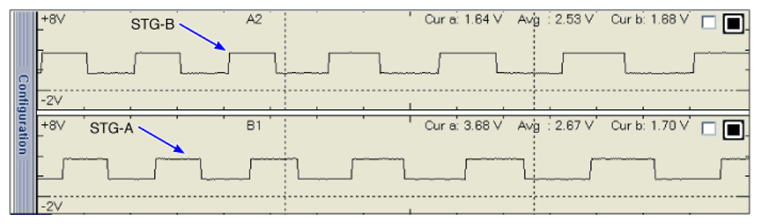

Fig 2: Normal Waveform Pattern At Turning Steering Wheel Into Right
G06513380Courtesy of HYUNDAI MOTOR CO.
