Repair Procedures: Removal

Disconnect (-) terminal from the battery in order to prevent current from flowing through wire.

Fig 1: Identifying Battery (-) Terminal
Courtesy of HYUNDAI MOTOR CO.

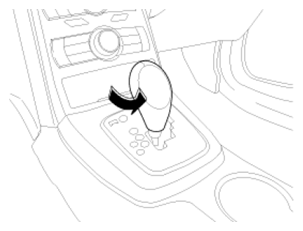

Remove the shift lever knob by rotating counter clockwise.

Fig 2: Removing Shift Lever Knob
Courtesy of HYUNDAI MOTOR CO.

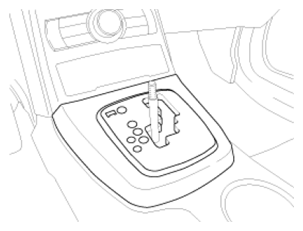

Remove the indicator assembly.

Fig 3: Identifying Indicator Assembly
Courtesy of HYUNDAI MOTOR CO.

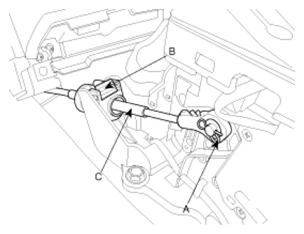

Remove the shift cable assembly (C) by pulling out the snap pin (A) and the socket (B).
NOTE: Remove the cable upward by pulling the marking part of the socket (B) with thumb.

Fig 4: Identifying Shift Cable Assembly, Snap Pin, & Socket
Courtesy of HYUNDAI MOTOR CO.
Disconnect the sports mode switch connector.

Fig 5: Identifying Sports Mode Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever assembly by removing bolts (4ea).

Fig 6: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the retainer by removing nuts (2ea) on the floor.

Fig 7: Identifying Retainer
Courtesy of HYUNDAI MOTOR CO.
After removing the shift cable assembly from the transmission, pull the shift cable assembly inside the vehicle.
NOTE: In case of replacing the shift cable assembly, do this procedure.
