Repair Procedures: Installation

After inserting the shift cable assembly inside the vehicle. install the shift cable assembly to the transmission,
NOTE: In case of replacing the shift cable assembly, do this procedure.
Install the retainer by installing nuts (2ea) on the floor.

Fig 1: Identifying Retainer
Courtesy of HYUNDAI MOTOR CO.

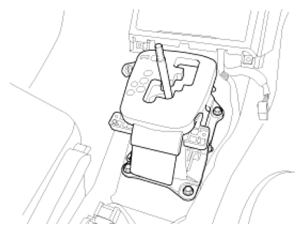

Install the shift lever assembly by installing bolts (4ea).

Fig 2: Identifying Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Connect the sports mode switch connector.

Fig 3: Identifying Sports Mode Switch Connector
Courtesy of HYUNDAI MOTOR CO.

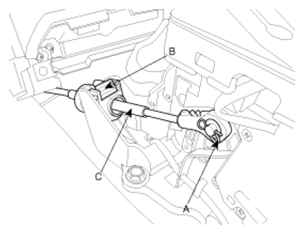

Install the shift cable assembly (C) by inserting the snap pin (A) and the socket (B).

Fig 4: Identifying Shift Cable Assembly, Snap Pin, & Socket
Courtesy of HYUNDAI MOTOR CO.

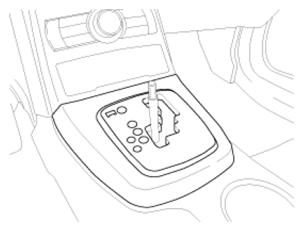

Install the indicator assembly.

Fig 5: Identifying Indicator Assembly
Courtesy of HYUNDAI MOTOR CO.

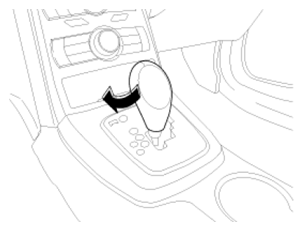

Install the shift lever knob by rotating clockwise.

Fig 6: Installing Shift Lever Knob
Courtesy of HYUNDAI MOTOR CO.
Connect (-) terminal to the battery.

Fig 7: Identifying Battery (-) Terminal
Courtesy of HYUNDAI MOTOR CO.
