Components and Component Locations: Components

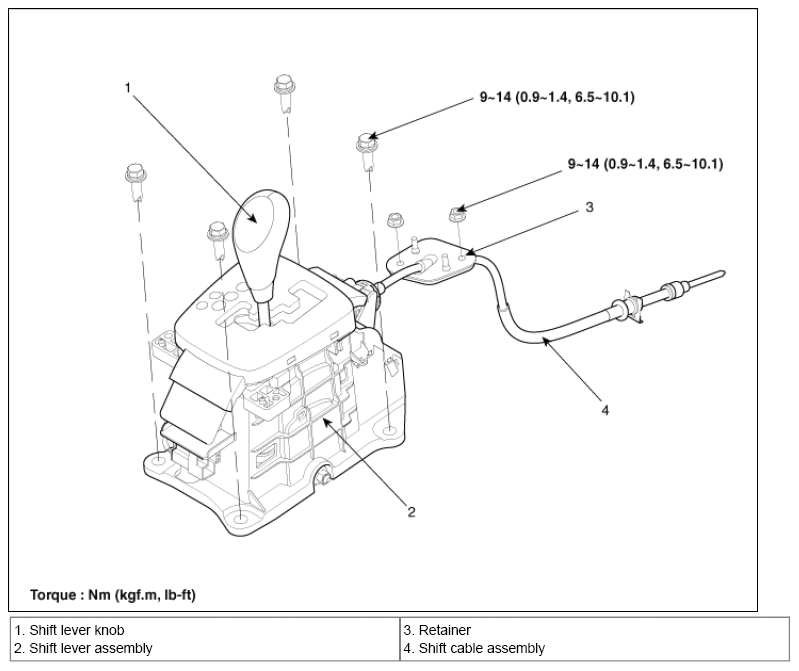

Fig 1: Shift Lever Replacement Components With Torque Specifications

G06512688

Courtesy of HYUNDAI MOTOR CO.
