Components and Component Locations: Components

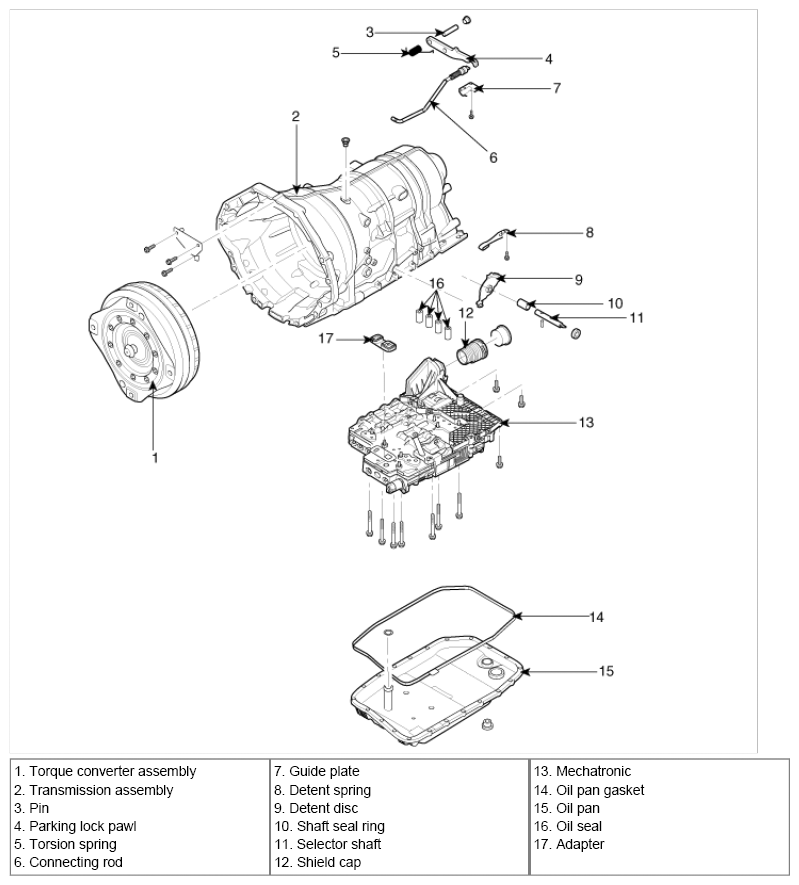

Fig 1: Identifying Automatic Transmission Components

G06509791

Courtesy of HYUNDAI MOTOR CO.
