Repair Procedures: Removal

WARNING: This page is about a different car, the 2013 Hyundai Genesis Coupe. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Loosen 2 screws holding the overhead console (A).

Fig 1: Identifying Overhead Console & Screws
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors (A) of sunroof switch then remove the overhead console lamp assembly.

Fig 2: Identifying Connectors Of Sunroof Switch
Courtesy of HYUNDAI MOTOR CO.

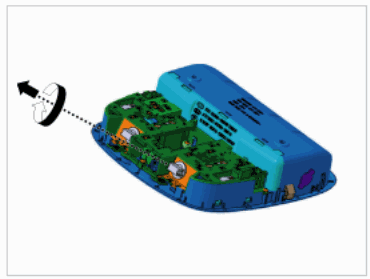

Replace the bulb after turning the socket in a conunterclockwise direction.

Fig 3: Turning Socket
Courtesy of HYUNDAI MOTOR CO.
If necessary to replace the bulb (A) only, replace the bulb after opening the overhead console lens.

Fig 4: Identifying Overhead Console Lamp Bulb
Courtesy of HYUNDAI MOTOR CO.
