Component Location

WARNING: This page is about a different car, the 2013 Hyundai Genesis Coupe. However, it is still accessible from the selected car via links, so may be relevant.

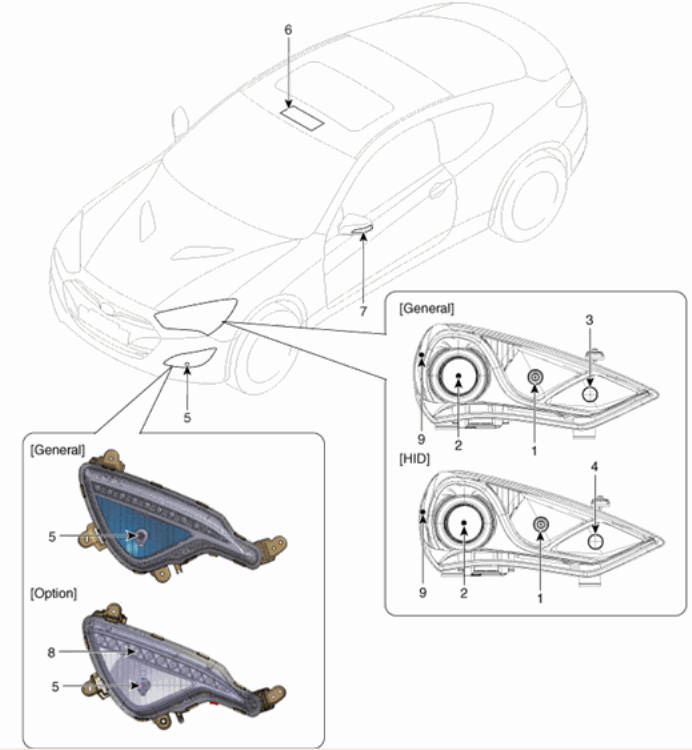

Fig 1: Locating Lighting System Components (Front)

Courtesy of HYUNDAI MOTOR CO.

1. Head lamp (High)
2. Head lamp (Low)
3. Turn signal / Position

4. Front turn signal lamp
5. Front fog lamp
6. Map lamp

7. Turn signal lamp (Mirror)
8. DRL
9. Side marker

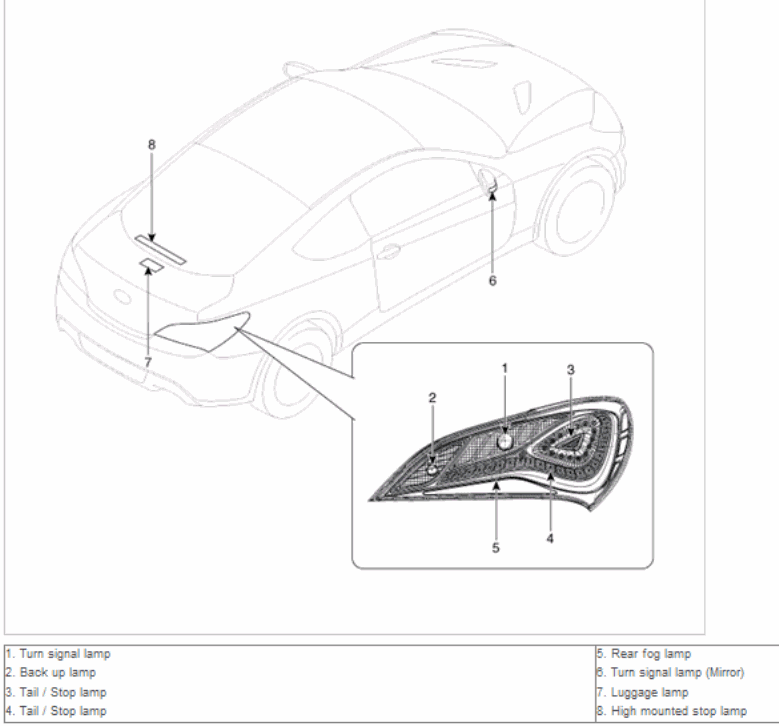

Fig 2: Locating Lighting System Components (Rear)

Courtesy of HYUNDAI MOTOR CO.
