Smart Key Unit

Disconnect the negative (-) battery terminal.
Remove the glove box (A).
(Refer to "CRASH PAD ")

Fig 1: Identifying Glove Box
Courtesy of HYUNDAI MOTOR CO.
Remove the glove box housing (A) after loosening the mounting screws.

Fig 2: Identifying Glove Box Housing & Mounting Screws
Courtesy of HYUNDAI MOTOR CO.

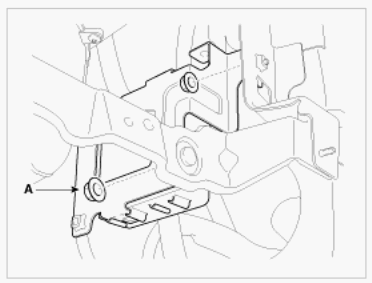

Loosen the nuts (2EA) from the smart key unit (A) after disconnecting the connector.

Fig 3: Identifying Smart Key Unit (2012)
Courtesy of HYUNDAI MOTOR CO.

Fig 4: Identifying Smart Key Unit (2013)
Courtesy of HYUNDAI MOTOR CO.
