Components and Component Locations: Components

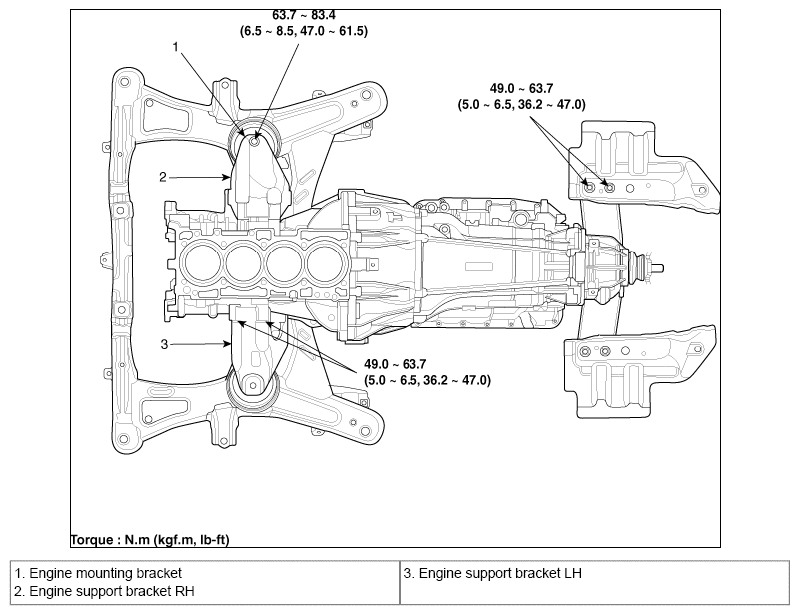

Fig 1: Engine Mounting/Support Brackets With Torque Specifications

G06514085

Courtesy of HYUNDAI MOTOR CO.
