Repair Procedures: Replacement

[2.0 Theta]

1. Drain the power steering fluid.
2. Remove the drive belt.
3. Disconnect the pressure tube and return hose from the power steering pump.

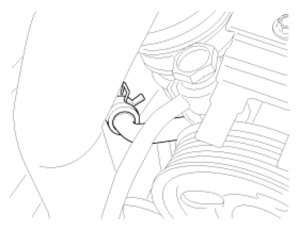

   Fig 1: Identifying Pressure Tube & Return Hose

   Courtesy of HYUNDAI MOTOR CO.
4. Loosen the mounting bolts and then remove the power steering pump.

   Tightening torque: 19.6 ~ 29.4N.m (2.0 ~ 3.0kgf.m, 14.5 ~ 21.7lb-ft)

   Fig 2: Identifying Mounting Bolts

   Courtesy of HYUNDAI MOTOR CO.
5. Installation is the reverse of the removal.

[3.8 DOHC (VVT)]

1. Drain the power steering fluid.
2. Remove the drive belt.
3. Disconnect the pressure tube and return hose from the power steering pump.
   Fig 3: Identifying Pressure Tube & Return Hose

   Courtesy of HYUNDAI MOTOR CO.
4. Loosen the mounting bolts and then remove the power steering pump.

   Tightening torque: 19.6 ~ 29.4N.m (2.0 ~ 3.0kgf.m, 14.5 ~ 21.7lb-ft)

   Fig 4: Identifying Mounting Bolts

   Courtesy of HYUNDAI MOTOR CO.
5. Installation is the reverse of the removal.
