BLUETOOTH Software Reprogramming (Service Campaign T11) (SC T11)

Publication date: 2011-11-01
Reference number: SC T11
Supersedes refnos: 11-01-048

BLUETOOTH SOFTWARE REPROGRAMMING (SERVICE CAMPAIGN T11)

SERVICE CAMPAIGN BULLETIN

Reference Number(s): 11-01-048, Date of Issue: November, 2011

HYUNDAI:	GENESIS COUPE (BK)
GROUP:	CAMPAIGN

REVISION HISTORY

IMPORTANT: *****DEALER STOCK ONLY*****
Dealers must perform this Service Campaign on all affected vehicles prior to customer retail delivery.
When a vehicle arrives at the Service Department, access Hyundai Motor America's "Warranty Vehicle Information" screen via WEBDCS to identify open Campaigns.

DESCRIPTION

This bulletin describes the procedure to reprogram the Bluetooth software in 2012 Genesis Coupe vehicles with the Audio system and Navigation system.

Applicable Vehicles: 2012 Genesis Coupe (BK)

Production Date Range: From April 17, 2011 to July 15, 2011

PARTS INFORMATION

PART NAME	PART #
USB Memory Stick	00201-3M700-QQH

WARRANTY INFORMATION

OP CODE	OPERATION	OP TIME
10C129R0	BLUETOOTH SOFTWARE REPROGRAMMING (NAVIGATION SYSTEM)	0.3 M/H
10C129R1	BLUETOOTH SOFTWARE REPROGRAMMING (AUDIO SYSTEM)	0.5 M/H

NOTE: Submit Claim on the Campaign Claim Entry Screen

SERVICE PROCEDURE

BLUETOOTH SOFTWARE UPDATE PROCEDURE FOR NAVIGATION SYSTEM

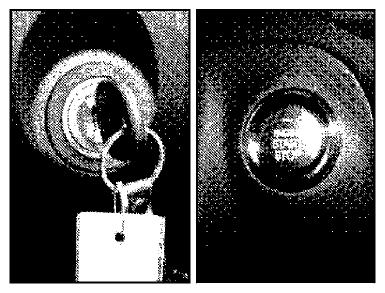

Place the ignition switch in the "ACC" position by pushing the start/stop button one time (without depressing the brake pedal).
Open the console armrest and then plug the USB memory stick into the USB slot.

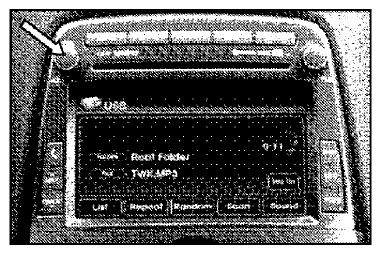

Turn off the system by pressing the "Power" knob.

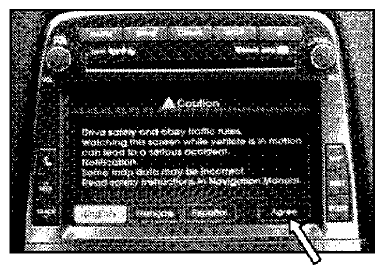

Touch the "Agree" bar on the screen.

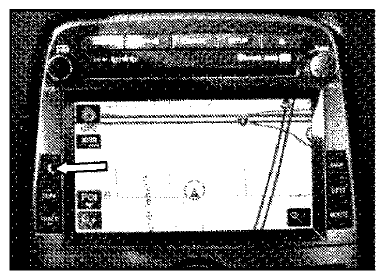

Press the "Phone" button.

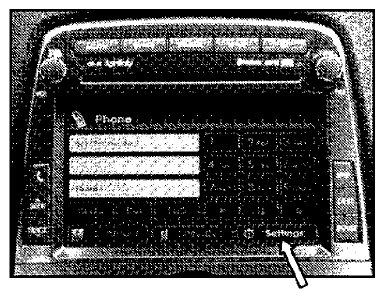

Touch the "Settings" bar on the screen.

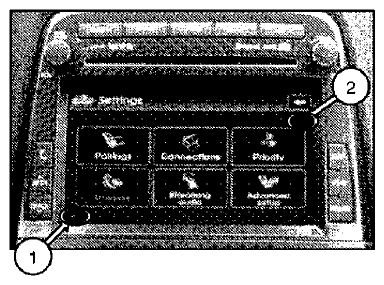

Touch the lower left corner and then touch the upper right corner on the "Settings" screen to access the "Bluetooth Engineering Mode" .
Check "Model Revision Ex:" on the screen for the Bluetooth software version.
- If the software version is 3.12.2, proceed with the software reprogramming.
- If the software version is 3.13.4, the software reprogramming does not need to be performed. The campaign procedure is completed.
Start the update by touching the "FSW-Update" bar on the screen and software update process will start.
If the software update process failed, repeat the update process by touching the "FSW-Update" bar on the screen again.
When the reprogramming is complete, an "Update Finished" message will display at the bottom of the screen.
Push the Start/Stop button two times (without depressing the brake pedal) to turn off the vehicle.

Remove the USB memory stick.
Push the Start/Stop Button one time (without depressing the brake pedal) to turn the ignition to the "ACC" position.
Repeat Steps 3-7 to verify the Bluetooth software version had been updated to 3.13.4.

SERVICE PROCEDURE

BLUETOOTH SOFTWARE UPDATE PROCEDURE FOR AUDIO SYSTEM

Place the ignition switch in the "ACC" position by turning the ignition switch to the "ACC" position or pushing the start/stop button one time (without depressing the brake pedal).

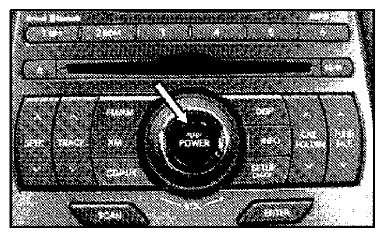

Turn the audio system off by pressing the "Power" knob and verify screen is displayed as shown in the photo.
Open the console armrest and then plug the USB memory stick into the USB slot.
"READING USB" is displayed on the screen momentarily.
The audio will start playing. Allow the music to play for a minimum of 5 seconds.

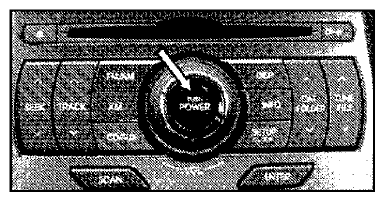

Turn off the audio by pushing the "POWER" knob.

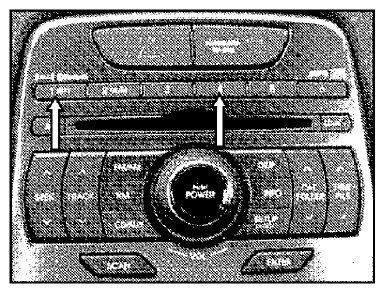

Simultaneously press and hold the radio preset button #1 and #4 for 2 seconds.
Then push the preset button #1 quickly for 4 times.
The current system software version is displayed on the screen.

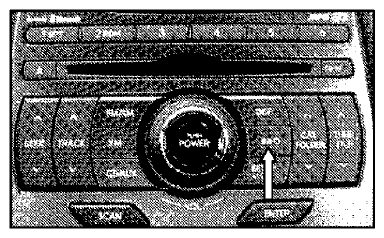

Push the "INFO" button.
Check the Bluetooth software version is "BT: (312)" .

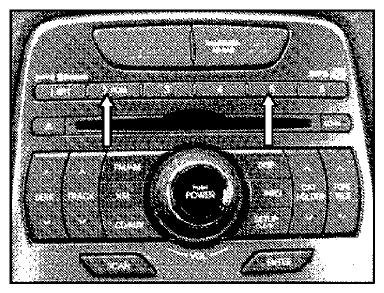

To update the Bluetooth software, push the radio preset button #5 one time and then push the radio preset button #2 one time.
The Bluetooth update process will start.
Updating takes about 24 minutes.
Screen will display as shown in the photo after the updating is completed.

Remove the USB memory stick.
Repeat step #7 to verify the Bluetooth software version is "BT: (312)" .
