Genesis Coupe 2.0T, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (DTC Troubleshooting) (1 Of 3) - 2.0L
>>
DTC P0139: O2 Sensor Circuit Slow Response (Bank 1/Sensor 2)
>>
Signal Waveform & Data
Signal Waveform & Data

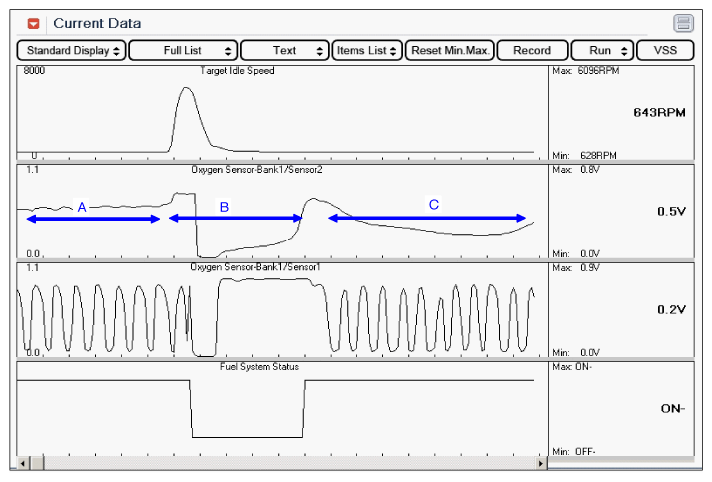

Fig 1: Scantool Screen Display - HO2S (Bank 1 / Sensor 2) Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
Sector A: Signal Normal
Sector B: Signal Fluctuation
Sector C: Signal Recovery
