Ground Circuit Inspection

  1. Ignition "OFF"
  2. Disconnect HO2S connectors
  3. Measure resistance between ground terminal of HO2S (B1S2) harness connector and chassis ground

    Specification:  Approx. 0Ω

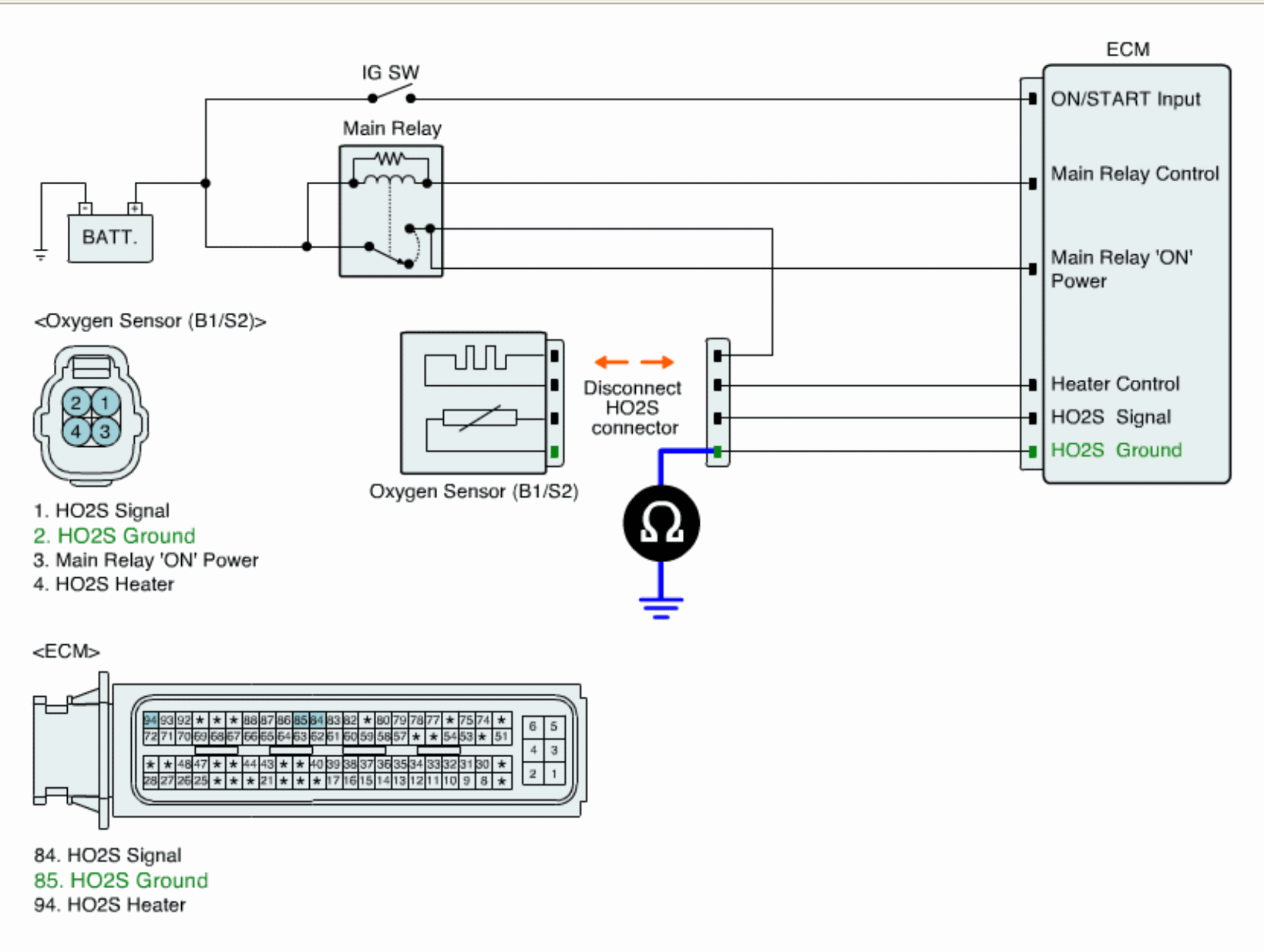

    Fig 1: Measuring Resistance Between Ground Terminal Of HO2S (B1S2) Harness Connector & Chassis Ground
    G00520317Courtesy of HYUNDAI MOTOR CO.
  4. Is resistance within the specification?

    YES

    NO

    • Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure
      NOTE: HO2S must have a clean air reference to function properly. The air is obtained by way of the sensor wire (s). Do not attempt to repair the wire (s), connector, or the terminals.
