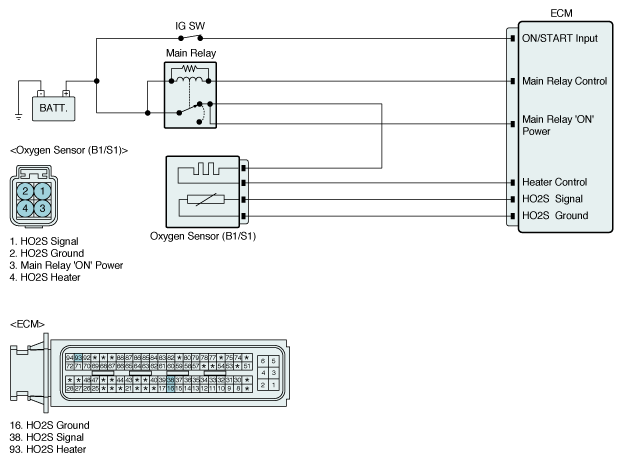

Home >> Hyundai >> 2012 >> Genesis Coupe 2.0T, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System (DTC Troubleshooting) (1 Of 3) - 2.0L >> DTC P0134: O2 Sensor Circuit No Activity Detected (Bank 1 Sensor 1) >> Diagnostic Circuit Diagram
