Genesis Coupe 2.0T, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System (DTC Troubleshooting) (1 Of 3) - 2.0L
>>
DTC P0130: O2 Sensor Circuit (Bank 1/Sensor 1)
>>
Signal Waveform & Data
Signal Waveform & Data

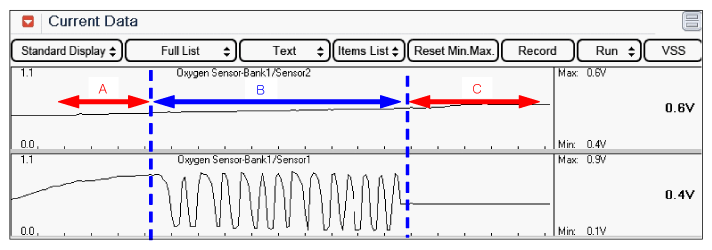

Fig 1: Scantool Screen Display - H02S (Bank 1 / Sensor 1) Signal Waveform
Courtesy of HYUNDAI MOTOR CO.
Sector A: Before Oxygen Sensor (B1S1) activated
Sector B: Normal signal of Oxygen Sensor (B1S1) during idle
Sector C: Line break in signal circuit
Courtesy of HYUNDAI MOTOR CO.
