Components and Component Locations: Component

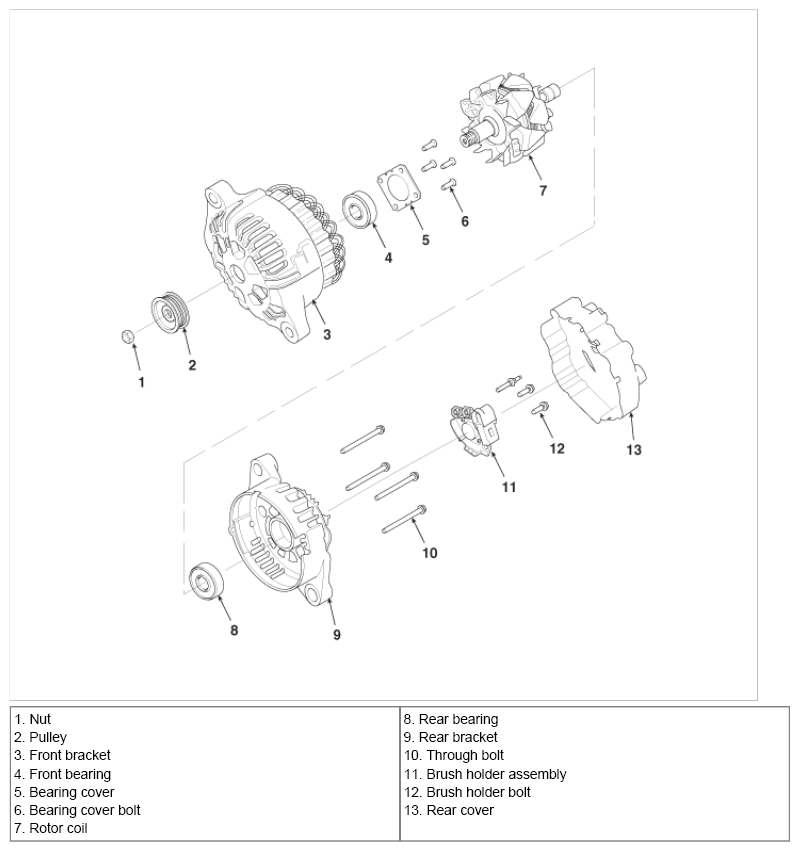

Fig 1: Identifying Alternator Components

G06510569

Courtesy of HYUNDAI MOTOR CO.
