Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
Select the vehicle model, and then do "Smart key code saving".

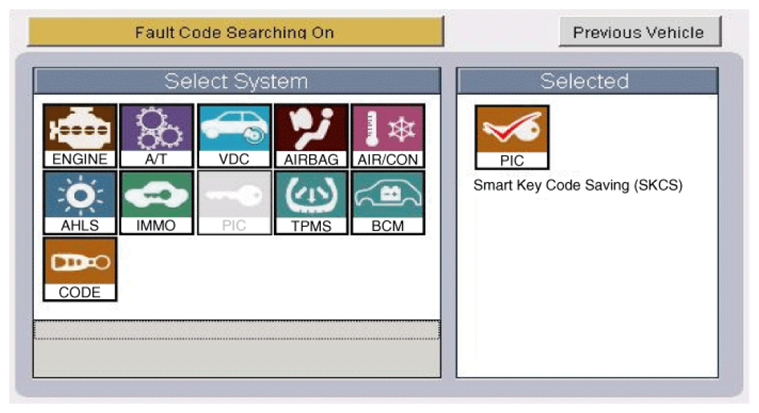

Fig 1: GDS Screen Display - Smart Key Code Saving (1 Of 10)
Courtesy of HYUNDAI MOTOR CO.

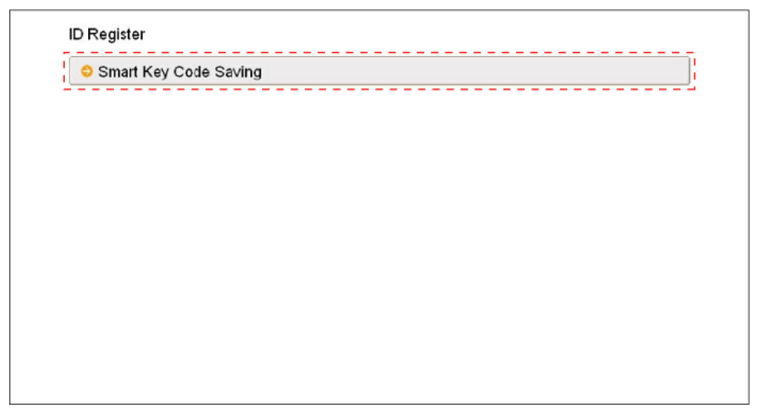

Fig 2: GDS Screen Display - Smart Key Code Saving (2 Of 10)
Courtesy of HYUNDAI MOTOR CO.
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be as shown in Fig 3.

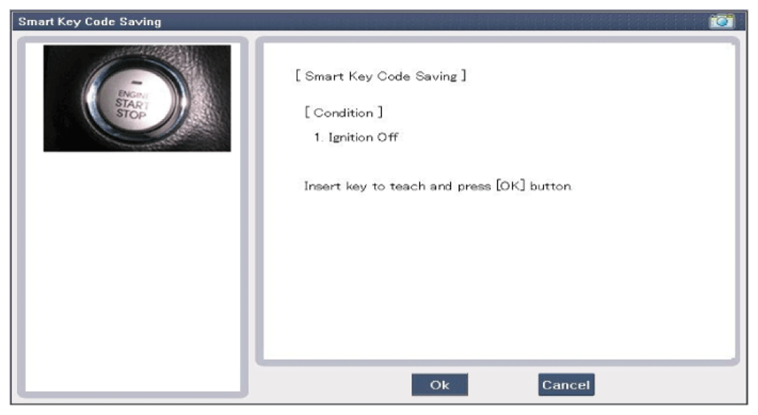

Fig 3: GDS Screen Display - Smart Key Code Saving (3 Of 10)
Courtesy of HYUNDAI MOTOR CO.
After inserting the teaching key, push "ENTER" key.
Input the "Pin code" for first key teaching.

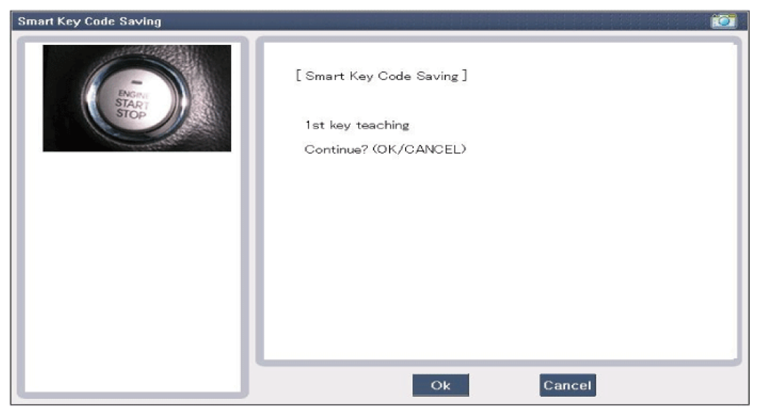

Fig 4: GDS Screen Display - Smart Key Code Saving (4 Of 10)
Courtesy of HYUNDAI MOTOR CO.

Fig 5: GDS Screen Display - Smart Key Code Saving (5 Of 10)
Courtesy of HYUNDAI MOTOR CO.
Confirm the message "First key teaching completed".

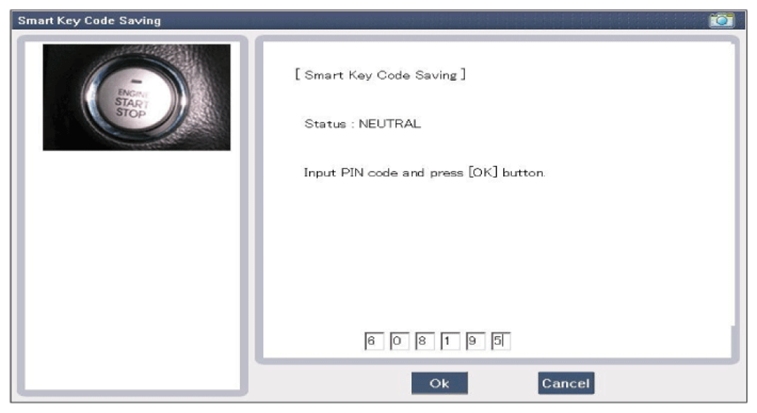

Fig 6: GDS Screen Display - Smart Key Code Saving (6 Of 10)
Courtesy of HYUNDAI MOTOR CO.

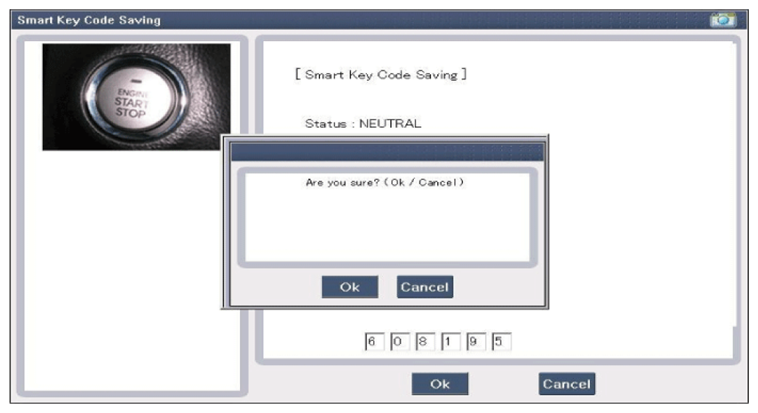

Fig 7: GDS Screen Display - Smart Key Code Saving (7 Of 10)
Courtesy of HYUNDAI MOTOR CO.
Input the "Pin code" for second key teaching.

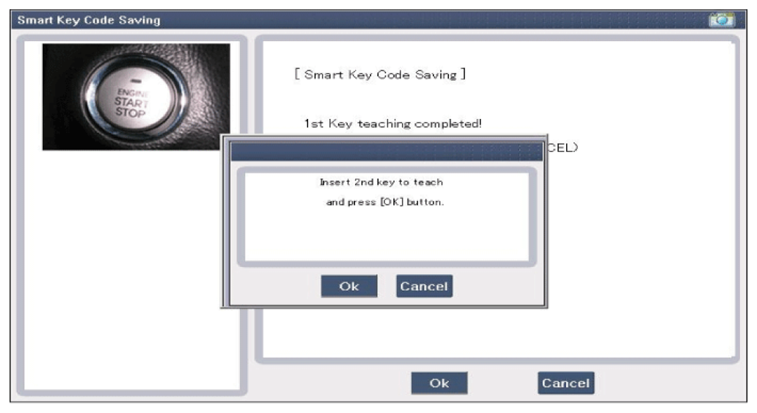

Fig 8: GDS Screen Display - Smart Key Code Saving (8 Of 10)
Courtesy of HYUNDAI MOTOR CO.

Fig 9: GDS Screen Display - Smart Key Code Saving (9 Of 10)
Courtesy of HYUNDAI MOTOR CO.
Confirm the message "Second key teaching completed".

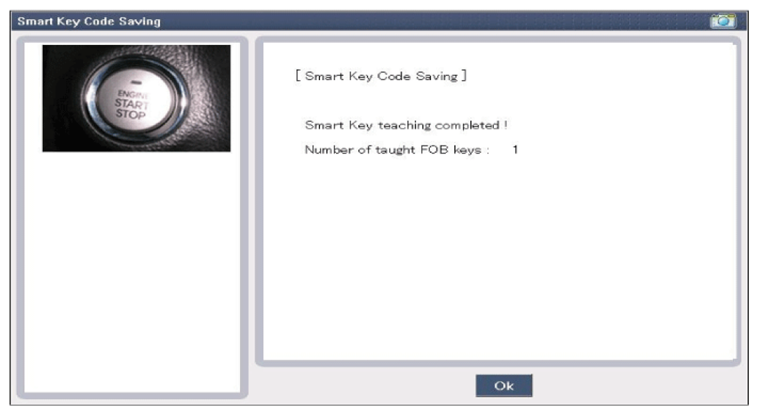

Fig 10: GDS Screen Display - Smart Key Code Saving (10 Of 10)
Courtesy of HYUNDAI MOTOR CO.
Then the screen will be as shown in Fig 10 when key teaching process is completed.
