RF Receiver (2013)

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear seat.
  3. Remove the package tray trim.
  4. Disconnect the connector after loosening the RF receiver (A) bolt (1EA).

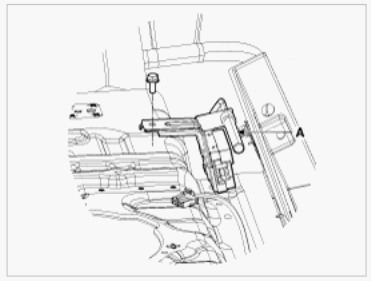

    Fig 1: Identifying RF Receiver & Bolt
    G00537470Courtesy of HYUNDAI MOTOR CO.
