FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

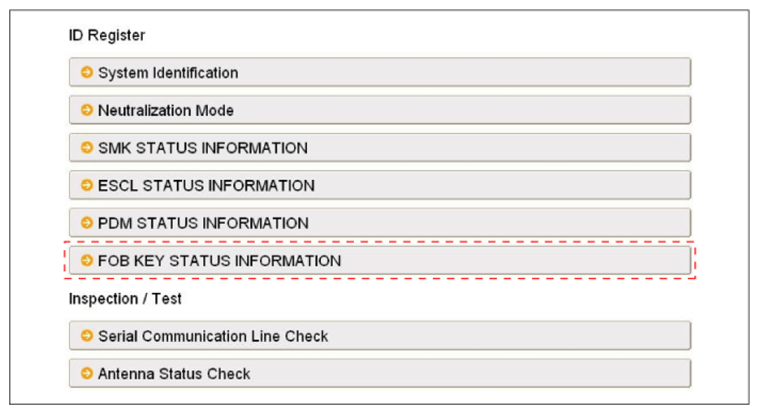

    Fig 1: GDS Screen Display - FOB Key Status Information (1 Of 2)
    G06510039Courtesy of HYUNDAI MOTOR CO.

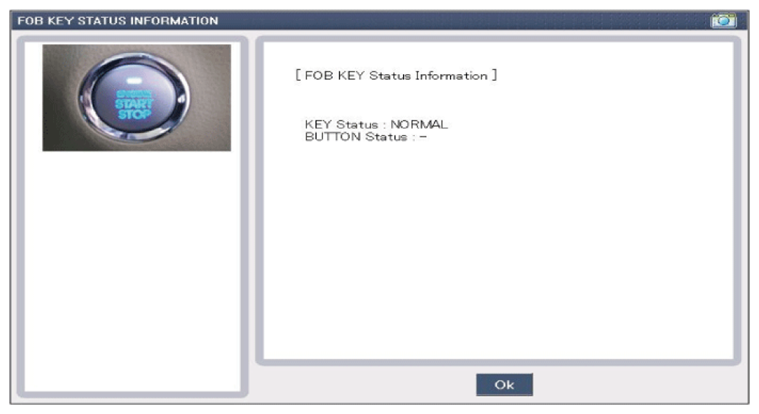

    Fig 2: GDS Screen Display - FOB Key Status Information (2 Of 2)
    G06510040Courtesy of HYUNDAI MOTOR CO.
