Monitor Scantool Data

Check parking position switch status.
1. Connect scantool with diagnostic connector.
2. Check current data with scantool.
3. Check "Shift lever P position" parameter on current data.
4. Check that data is appropriately changeable according to the shift lever position in P or others.
  Specification: P position: ON, Not in P position: OFF.

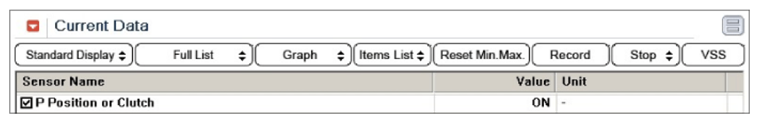

  Fig 1: Scantool Screen Display - Shift Lever P Position Parameter
  Courtesy of HYUNDAI MOTOR CO.
5. Is the shift lever P position normal?
  YES
  - Check for poor connection between harness connector and Parking Position switch or Smart Key Module:
    Thoroughly check the looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector. Repair or replace as necessary, and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Go to TERMINAL AND CONNECTOR INSPECTION .
