Trouble Diagnostics When Using Scantool

The body control module can diagnose by using the diagnosis tool more quickly.
The BCM communicates with the diagnosis tool and then reads the input/output value and drives the actuator.
To diagnose the BCM function, select the menu of model and body control module.

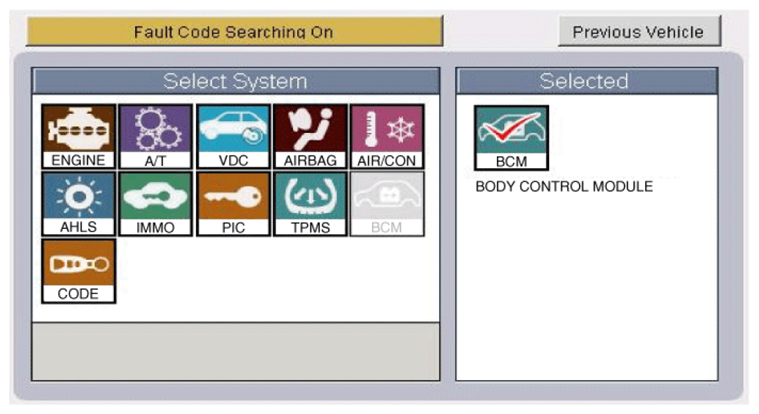

Fig 1: Scantool Screen Display - Selecting Body Control Module
Courtesy of HYUNDAI MOTOR CO.
To consult the present input/out value of BCM, "Current Data". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door, locks, outside mirror, wiper, auto-light and transmitters etc.

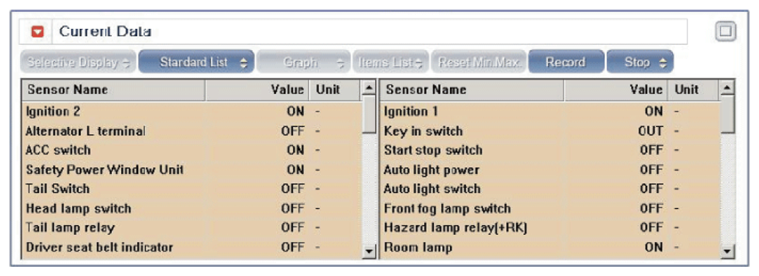

Fig 2: Scantool Screen Display - BCM Current Data
Courtesy of HYUNDAI MOTOR CO.
To perform compulsory operation on BCM input factors, select "ACTUATION TEST".

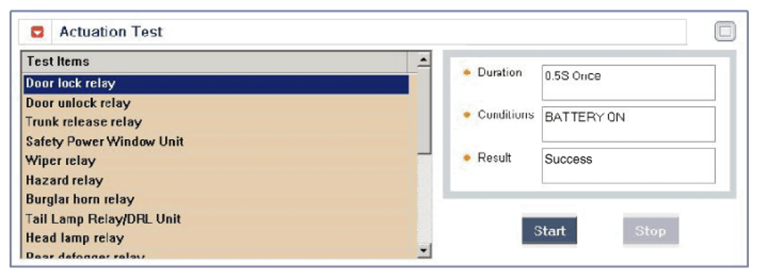

Fig 3: Scantool Screen Display - Actuation Test (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 4: Scantool Screen Display - Actuation Test (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
