Home >> Hyundai >> 2012 >> Genesis Coupe 2.0T R-Spec >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transmission Control System >> Shift Lever >> Components and Component Locations >> Components

Components and Component Locations: Components

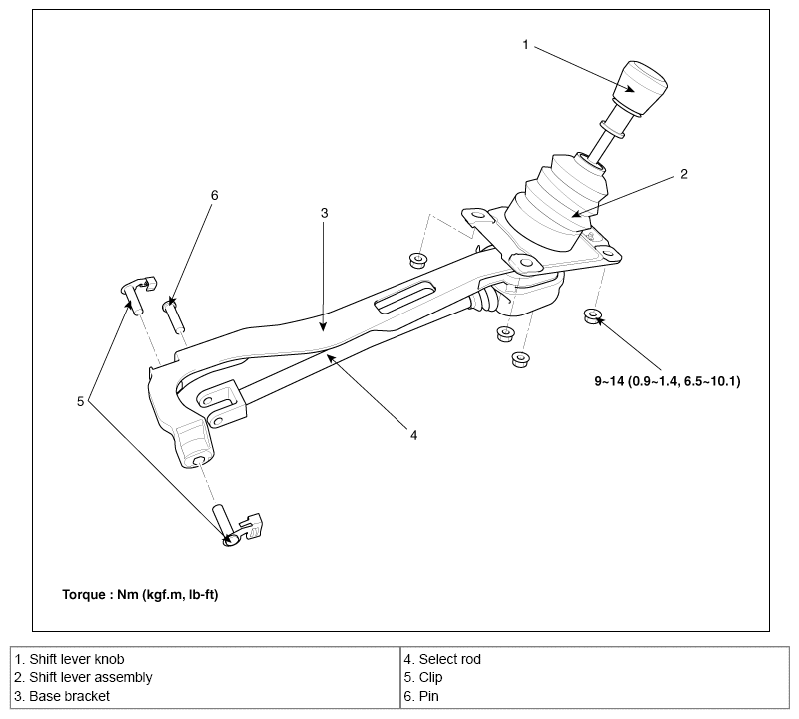

Fig 1: Shift Lever Replacement Components With Torque Specifications

G06514246

Courtesy of HYUNDAI MOTOR CO.
