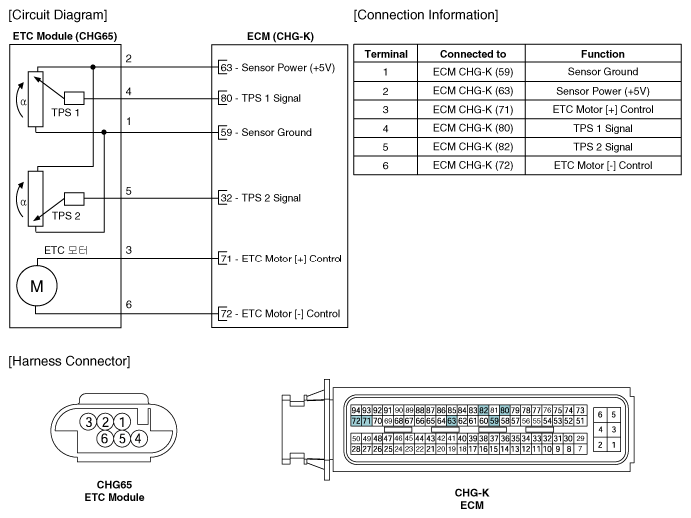

Home >> Hyundai >> 2012 >> Genesis Coupe 2.0T R-Spec >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.0L >> ETC (Electronic Throttle Control) System >> Schematic Diagrams >> Circuit Diagram
