PDM Diagnosis With GDS

1. It will be able to diagnose defects of Smart key with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
2. Select model and "Smart key system (Button start)" menu if you want to check PDM.
   Fig 1: Screen Display - Selecting Smart Key System (Button Start)

   Courtesy of HYUNDAI MOTOR CO.

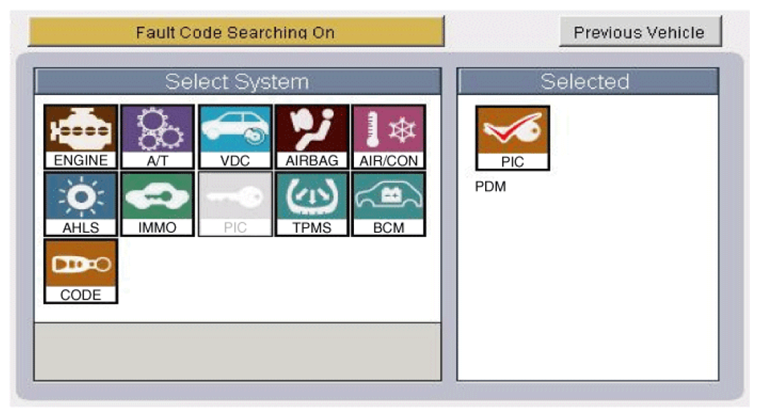

3. Select "PDM" in the menu.
   Fig 2: Screen Display - Selecting PDM

   Courtesy of HYUNDAI MOTOR CO.

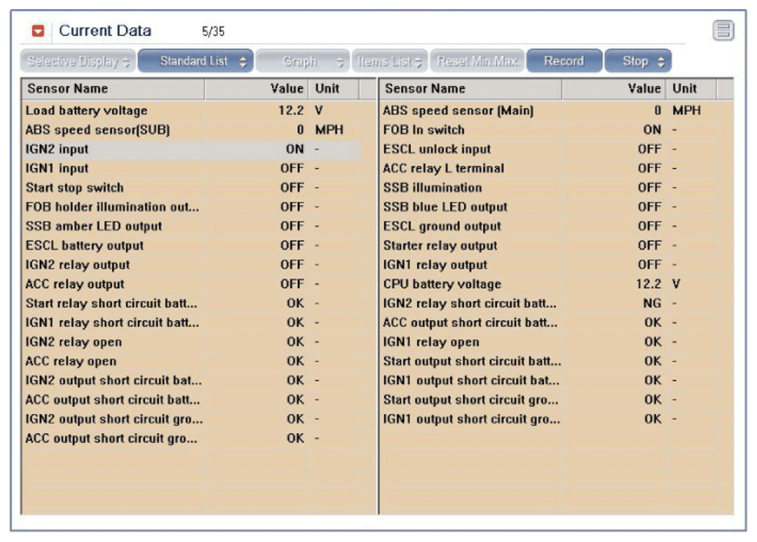

4. Select "Current Data", if you want to check current data of PDM.

   It provides the input/output status of each module.

   Fig 3: Screen Display - Current Data

   Courtesy of HYUNDAI MOTOR CO.

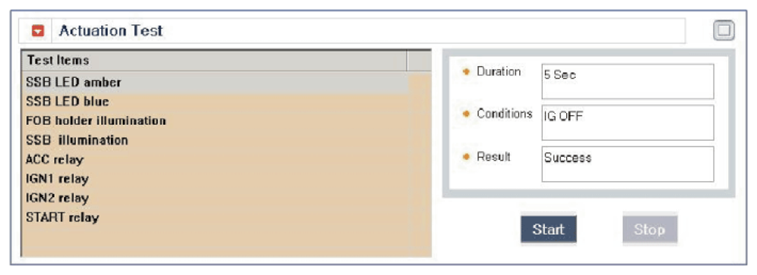

5. If you want to check PDM data operation forcefully, select "Actuation test".
   Fig 4: Screen Display - Actuation Test

   Courtesy of HYUNDAI MOTOR CO.

Input/output Current Data

Actuation Test
