Components & Components Location

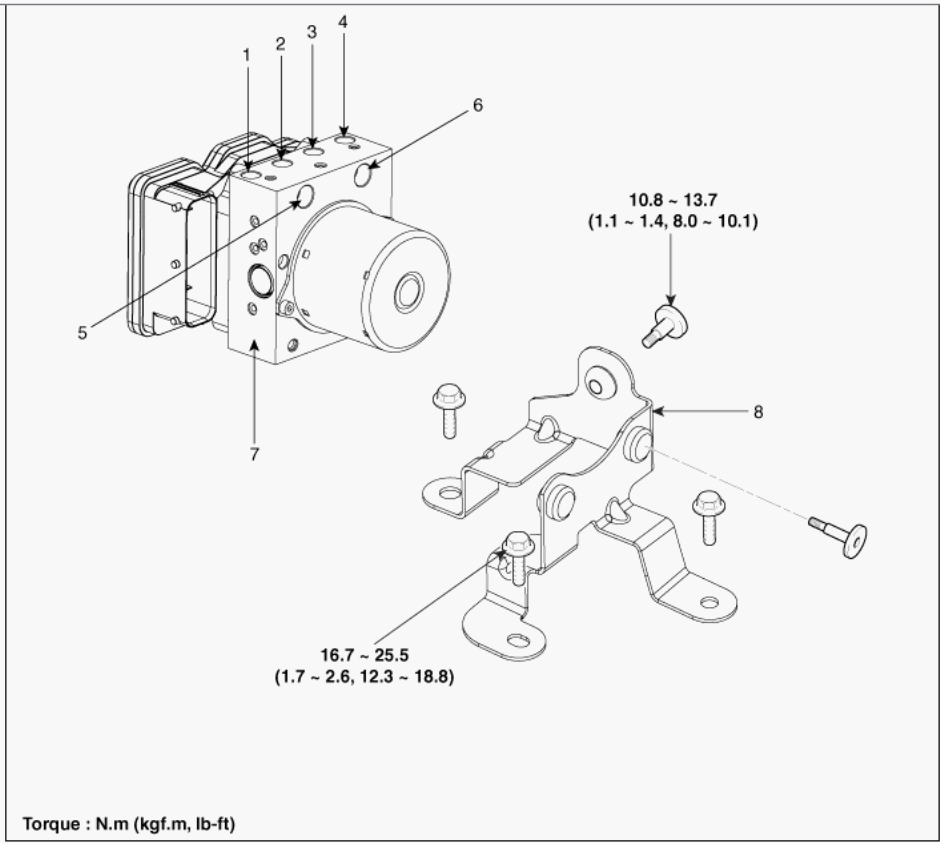

Fig 1: ESC Control Module Replacement Components With Torque Specifications
G00532235Courtesy of HYUNDAI MOTOR CO.
1. Front-left tube 5. MC2
2. Rear-right tube 6. MC1
3. Rear-left tube 7. ESC control module (HECU)
4. Front-right tube 8. Bracket
