Home >> Hyundai >> 2012 >> Genesis Coupe 2.0T R-Spec >> Repair and Diagnosis >> Body & Frame >> Windows >> Interior >> Crash Pad >> Components and Component Locations >> Components

Components and Component Locations: Components

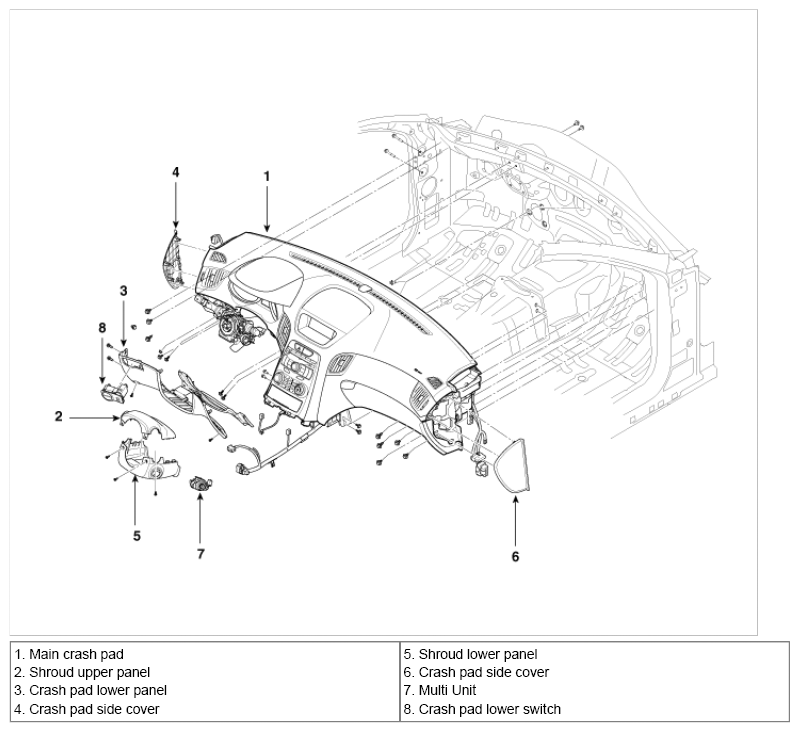

Fig 1: Identifying Crash Pad Components (1 Of 2)
G06513473Courtesy of HYUNDAI MOTOR CO.

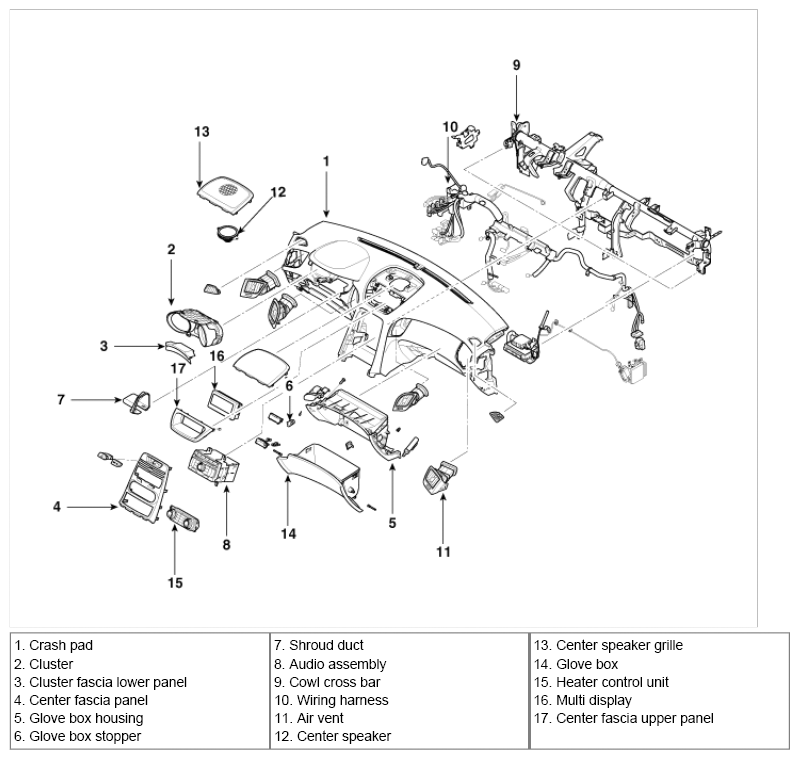

Fig 2: Identifying Crash Pad Components (2 Of 2)
G06513474Courtesy of HYUNDAI MOTOR CO.
