PDM Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "PDM STATUS INFO".

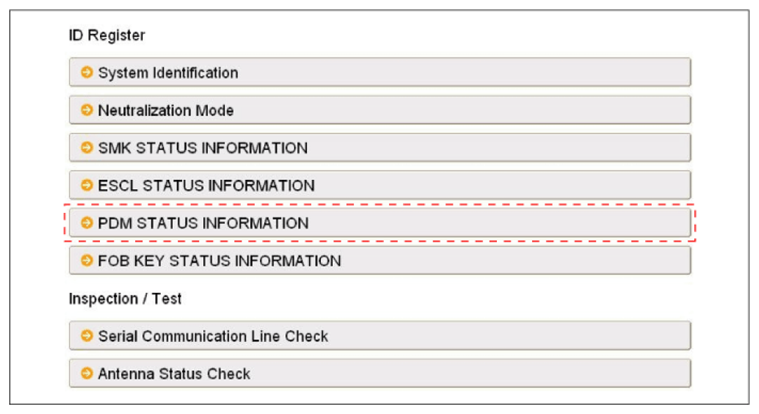

    Fig 1: GDS Screen Display - PDM Status Information (1 Of 2)
    G06510043Courtesy of HYUNDAI MOTOR CO.

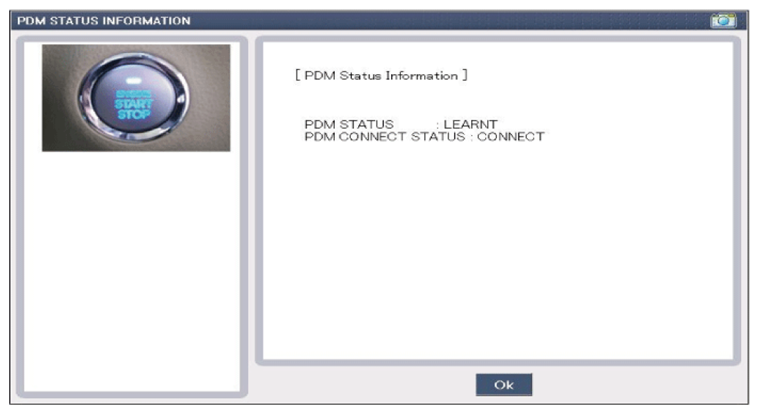

    Fig 2: GDS Screen Display - PDM Status Information (2 Of 2)
    G06510044Courtesy of HYUNDAI MOTOR CO.
