Neutralization Status Check

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
After IG ON, select the "Neutralization mode".

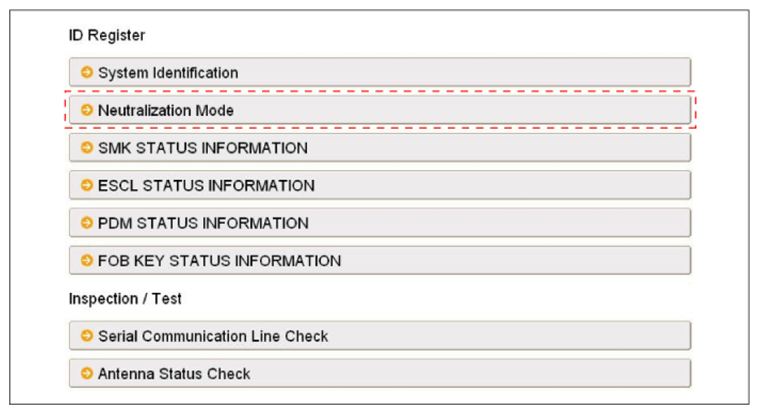

Fig 1: GDS Screen Display - Selecting Neutralization Mode
Courtesy of HYUNDAI MOTOR CO.

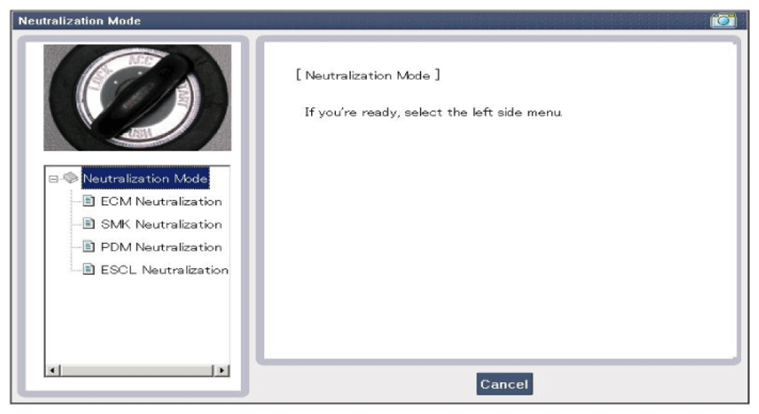

Fig 2: GDS Screen Display - Neutralization Mode Menu
Courtesy of HYUNDAI MOTOR CO.

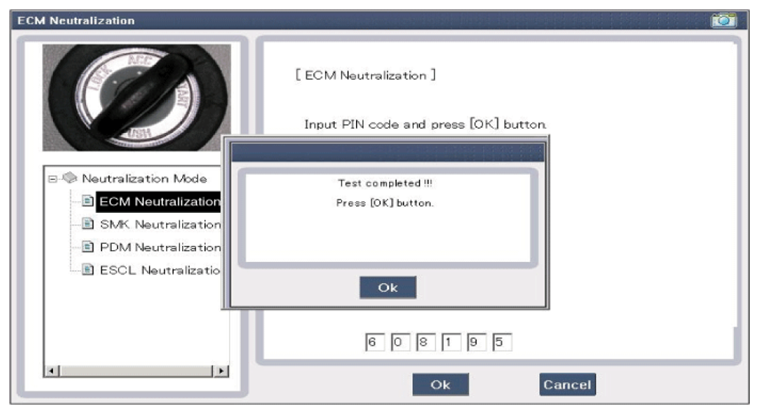

Fig 3: GDS Screen Display - ECM Neutralization (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

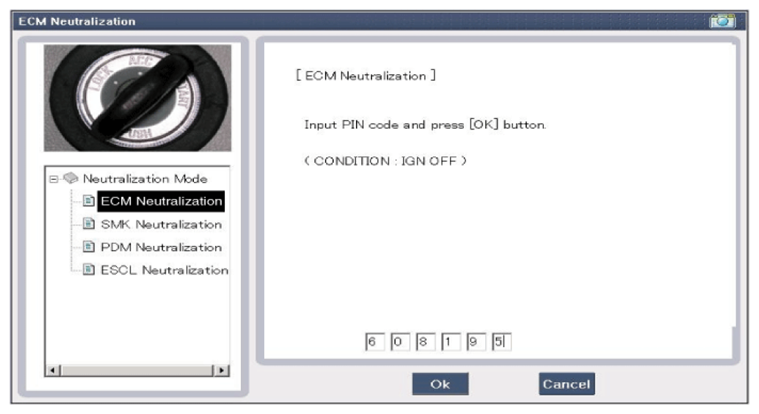

Fig 4: GDS Screen Display - ECM Neutralization (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.

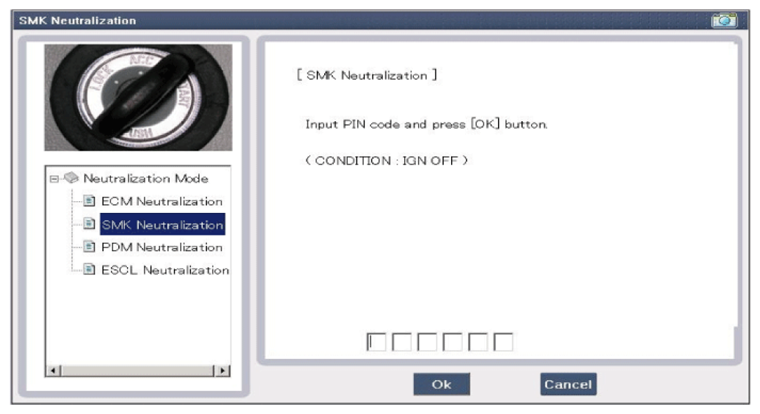

Fig 5: GDS Screen Display - SMK Neutralization (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

Fig 6: GDS Screen Display - SMK Neutralization (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

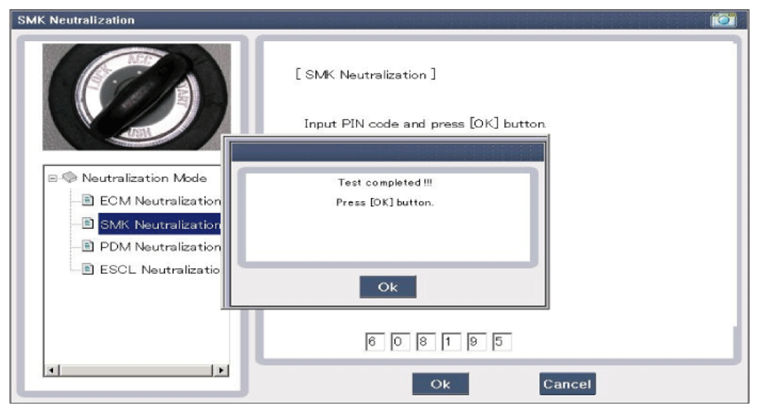

Fig 7: GDS Screen Display - SMK Neutralization (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.

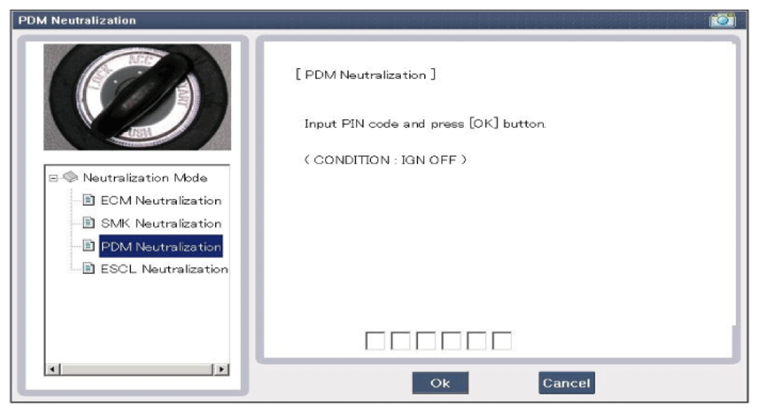

Fig 8: GDS Screen Display - PDM Neutralization (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

Fig 9: GDS Screen Display - PDM Neutralization (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

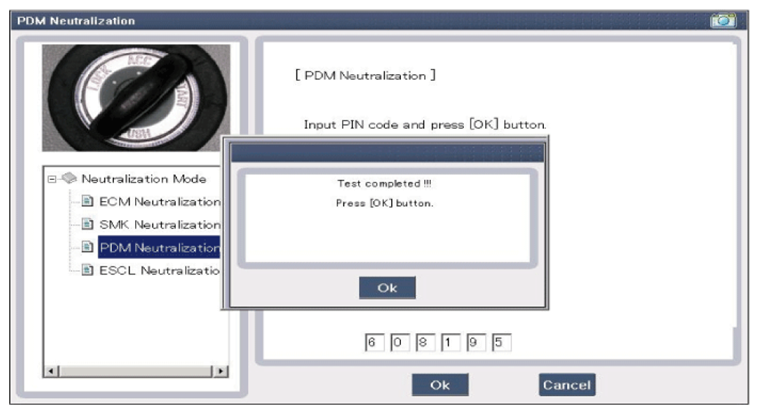

Fig 10: GDS Screen Display - PDM Neutralization (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.

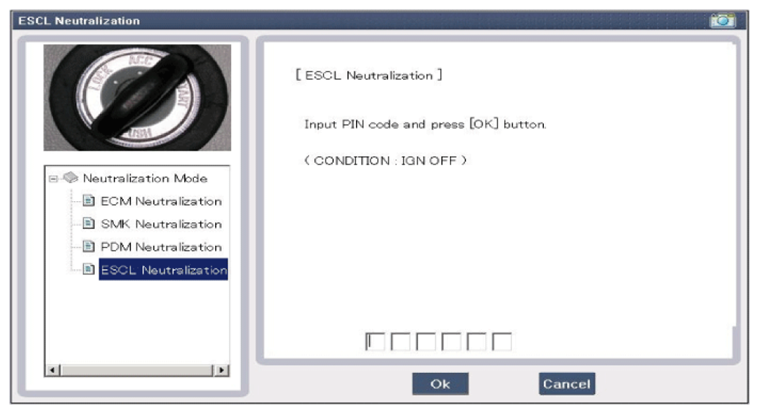

Fig 11: GDS Screen Display - ESCL Neutralization (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

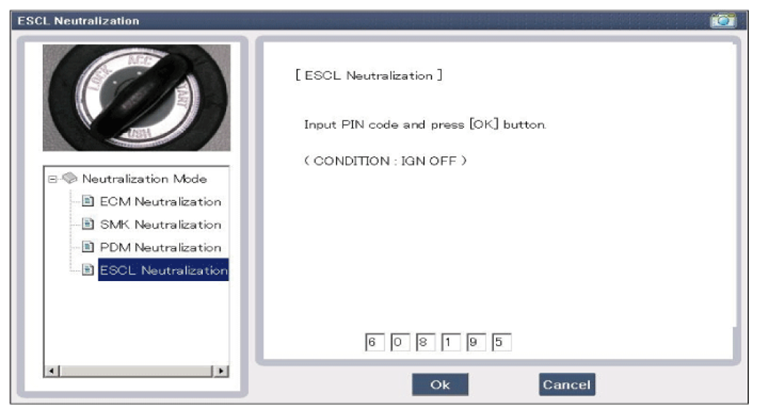

Fig 12: GDS Screen Display - ESCL Neutralization (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

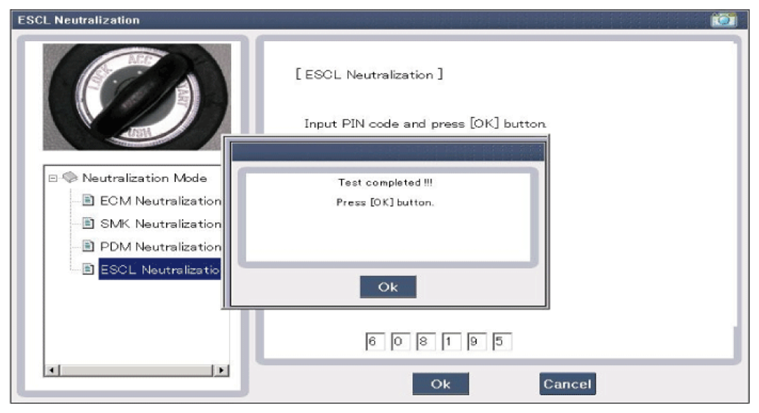

Fig 13: GDS Screen Display - ESCL Neutralization (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.

Input Switch List

INPUT SWITCH LIST

Actuator List

ACTUATOR LIST

No.	Item name	Condition
1	KEY out Indicator Lamp	Ignition switch ON Engine off
2	IMMO. indicator Lamp	Ignition switch ON Engine off
3	External Buzzer	Ignition switch ON Engine off
4	Interior Antenna 1 Active	Ignition switch ON Engine off
5	Interior Antenna 2 Active	Ignition switch ON Engine off
6	Interior Antenna 3 Active	Ignition switch ON Engine off
7	Bumper/trunk Antenna Active	Ignition switch ON Engine off
8	DRV_DR Antenna Active	Ignition switch ON Engine off
9	AST_DR Antenna Active	Ignition switch ON Engine off
