ESCL Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "ESCL STATUS INFO".

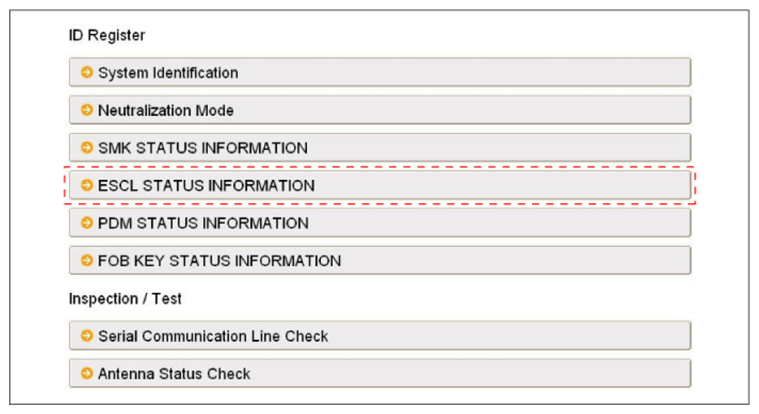

    Fig 1: GDS Screen Display - ESCL Status Information (1 Of 2)
    G06510045Courtesy of HYUNDAI MOTOR CO.

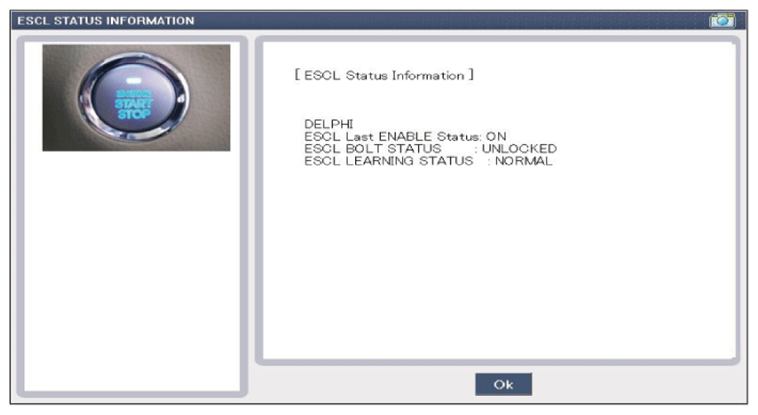

    Fig 2: GDS Screen Display - ESCL Status Information (2 Of 2)
    G06510046Courtesy of HYUNDAI MOTOR CO.
