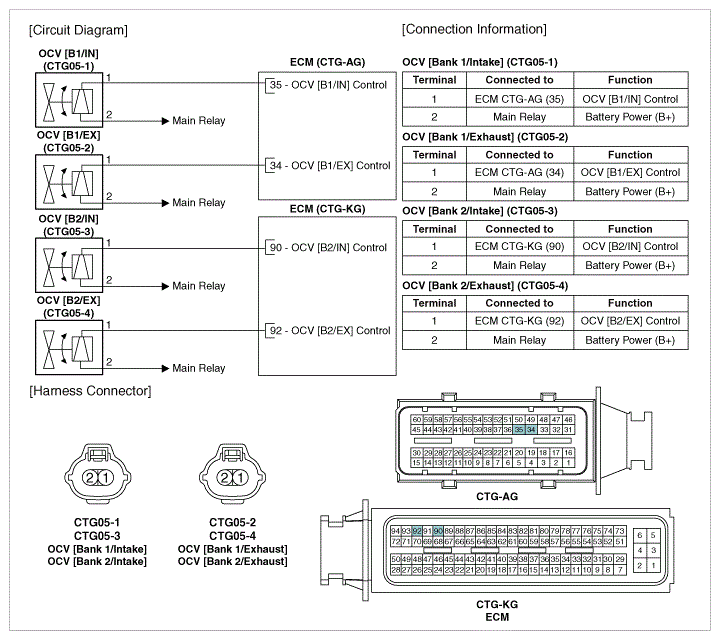

Home >> Hyundai >> 2012 >> Genesis 5.0 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 5.0L >> CVVT Oil Control Valve (OCV) >> Schematic Diagrams >> Circuit Diagram
