Chart 7
Chart 7

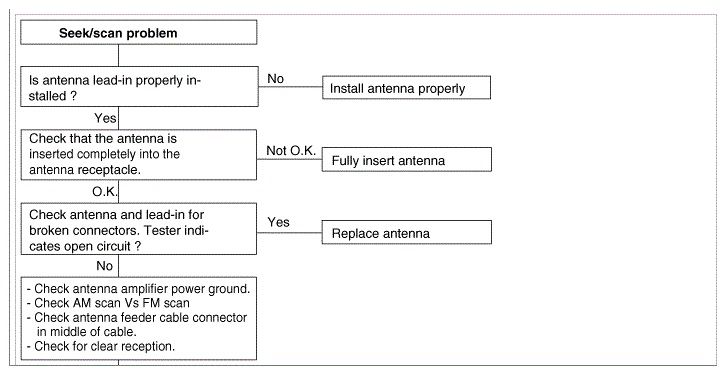

Fig 1: Body Electrical System Troubleshooting Flowchart (Chart 7)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
