Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Audio System
>>
Troubleshooting
>>
Chart 2
Chart 2

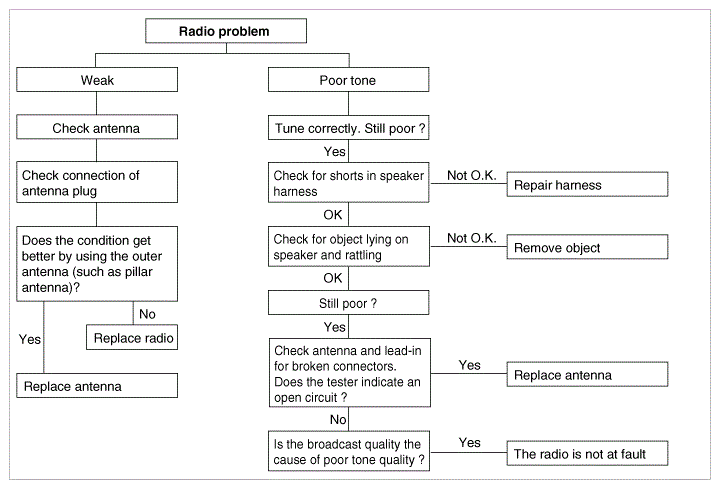

Fig 1: Body Electrical System Troubleshooting Flowchart (Chart 2)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
