Chart 1

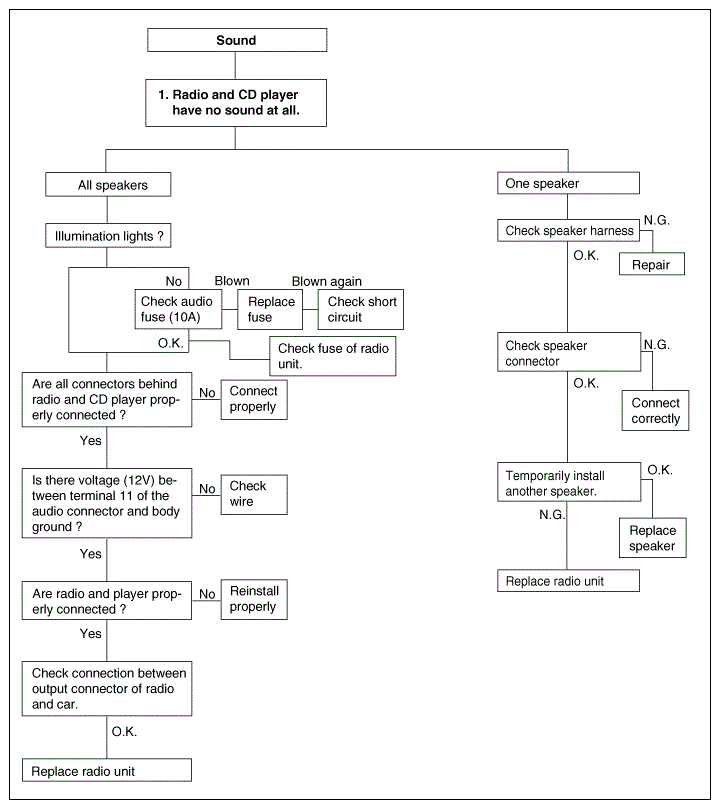

Fig 1: Body Electrical System Troubleshooting Flowchart (Chart 1, 1 Of 2)
G08853261Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Body Electrical System Troubleshooting Flowchart (Chart 1, 2 Of 2)
G08853262Courtesy of HYUNDAI MOTOR AMERICA
