Components and Components Location: Components

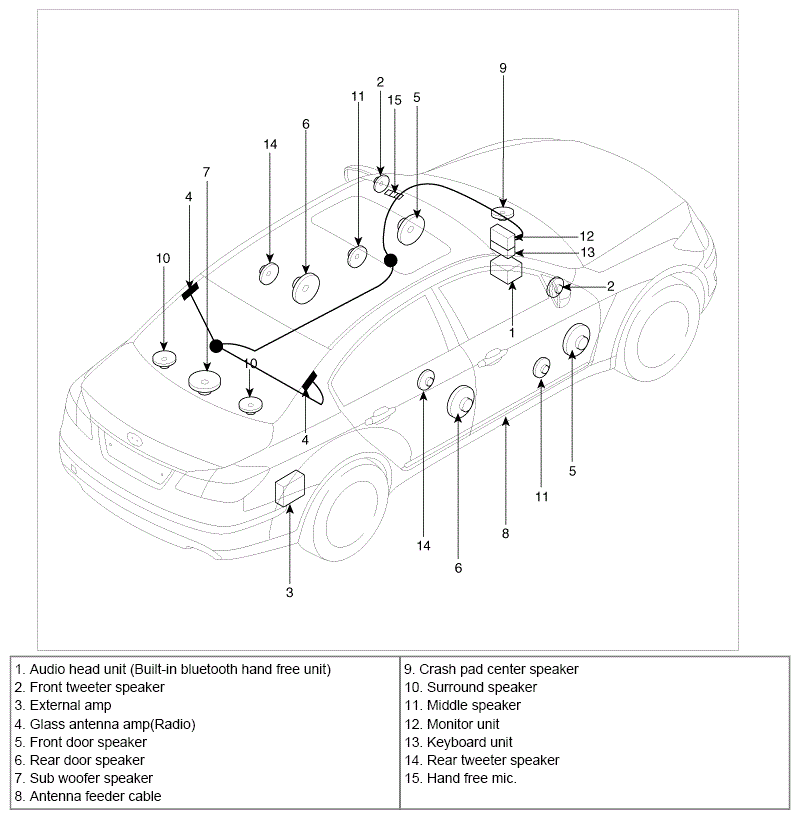

Fig 1: Identifying Audio System Components

G08853179

Courtesy of HYUNDAI MOTOR AMERICA
