Schematic Diagrams

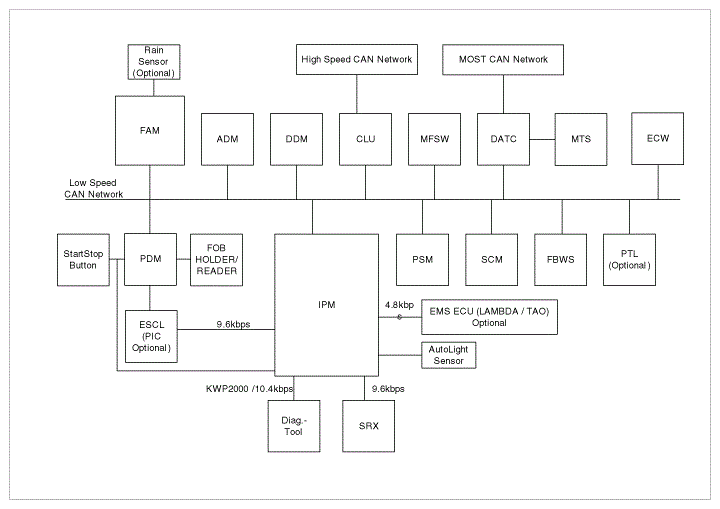

Fig 1: Body Control Module Communication Diagram

G08838461

Courtesy of HYUNDAI MOTOR AMERICA

IPM: Instrument Panel Module

FAM: Front Area Module

DDM: Driver Door Module

ADM: Assist Door Module

SCM: Steering Control Module

SMK: Smart Key

PDM: Power Distribution Module

CLU: Cluster

MFSW: Multi Function Switch

PSM: Power Seat Module

FBWS: Front Back Warning System

PTM: Power Trunk Module

ECW: Electronic Control Wiper

ESCL: Electronic Steering Column Lock
