Variant coding

  1. Connect scantool to Data Link Connector (DLC).
  2. IG "ON"
  3. Using scantool, Perform Variant coding program. (Fig 1)
  4. IG "OFF" and wait for about 10 seconds, and then IG "ON"
  5. IG "OFF" and wait for about 10 seconds again, and then, IG "ON
  6. Go to "COMPONENT INSPECTION " procedure.

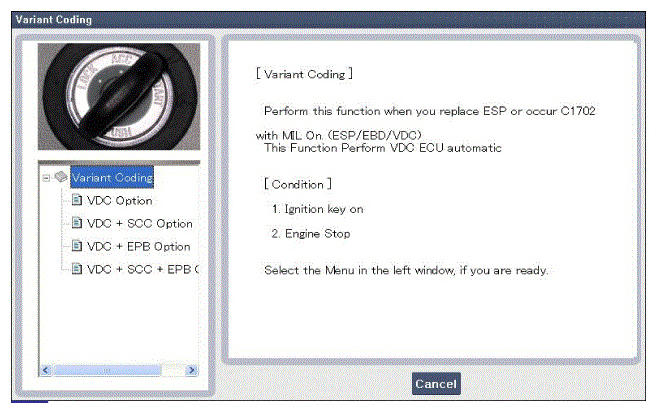

    Fig 1: Display - Scantool Diagnostic Item (Variant Coding)
    G08839821Courtesy of HYUNDAI MOTOR AMERICA
