Components and Components Location: Components

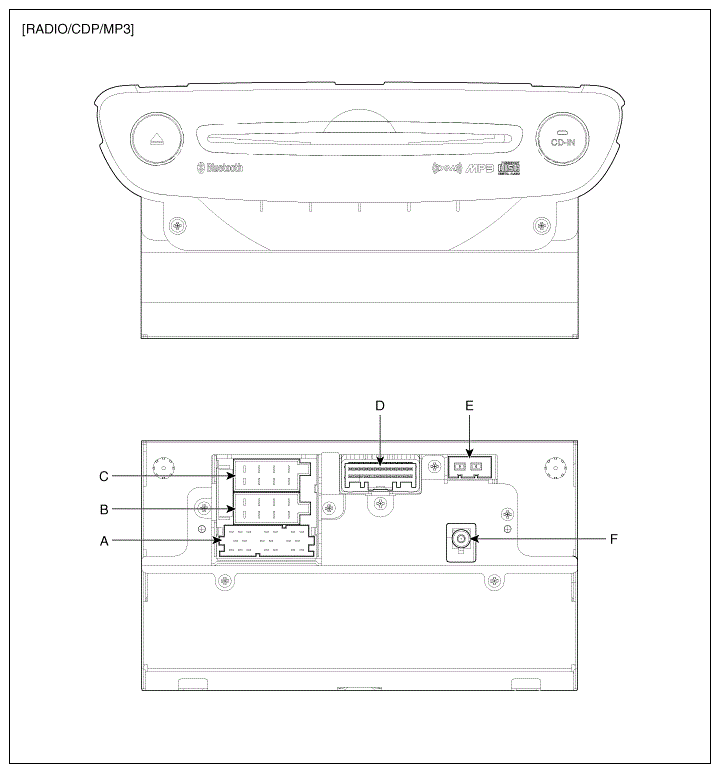

Fig 1: Identifying Audio Unit Components (Radio/CDP/MP3)

Courtesy of HYUNDAI MOTOR AMERICA

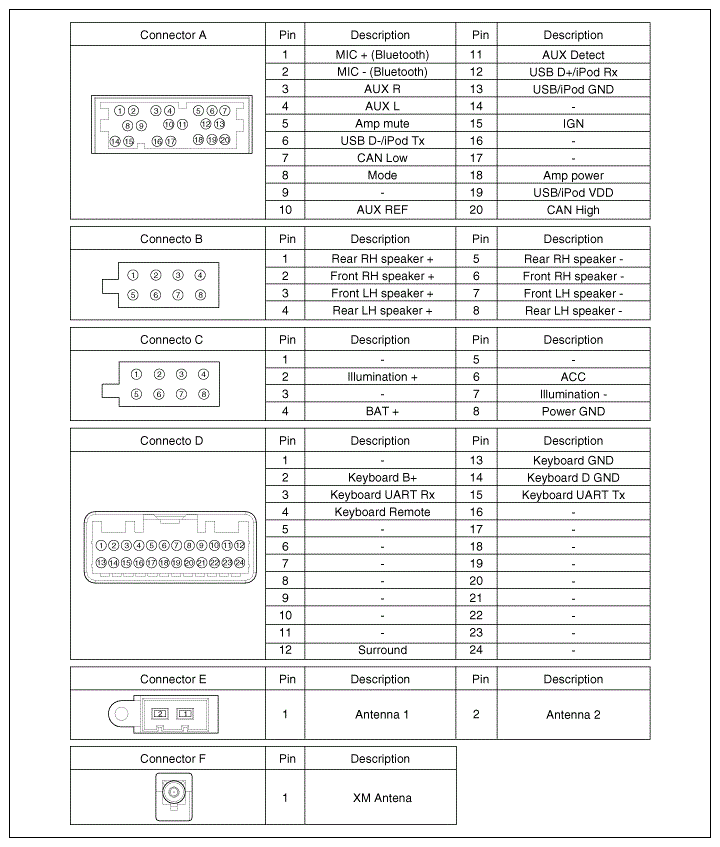

Fig 2: Identifying Audio Unit Connector Terminals (Radio/CDP/MP3)

Courtesy of HYUNDAI MOTOR AMERICA

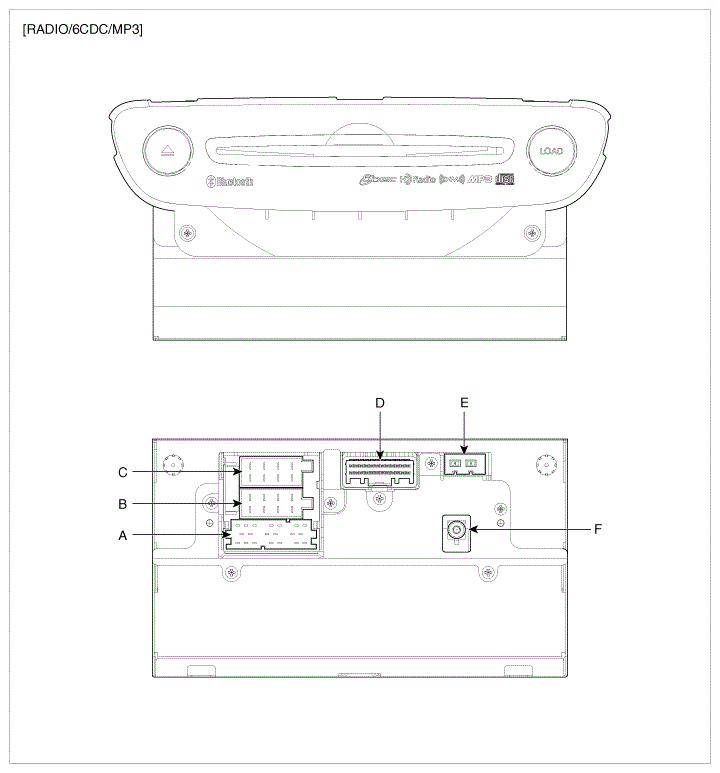

Fig 3: Identifying Audio Unit Components (Radio/6CDC/MP3)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 4: Identifying Audio Unit Connector Terminals (Radio/6CDC/MP3)

Courtesy of HYUNDAI MOTOR AMERICA

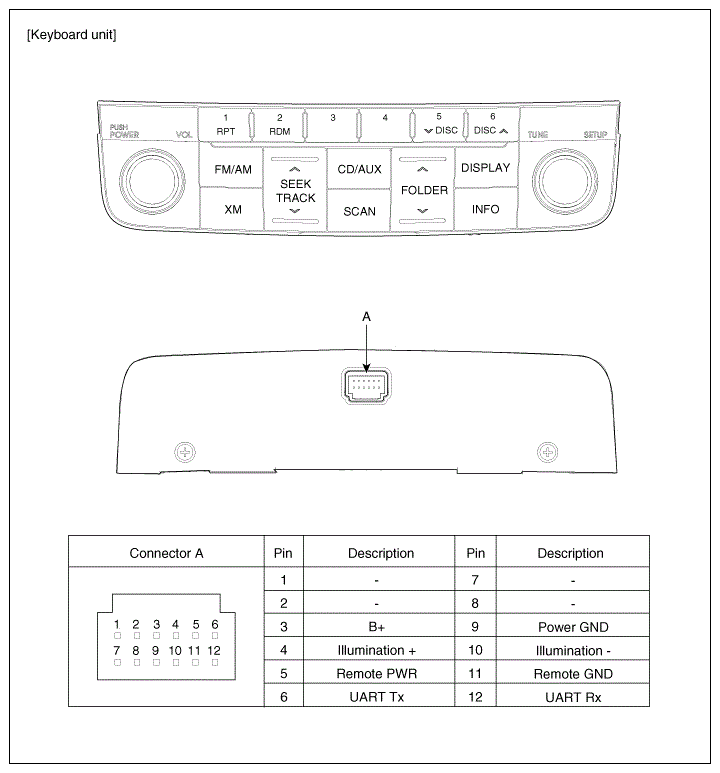

Fig 5: Identifying Keyboard Unit Connector Terminals

Courtesy of HYUNDAI MOTOR AMERICA

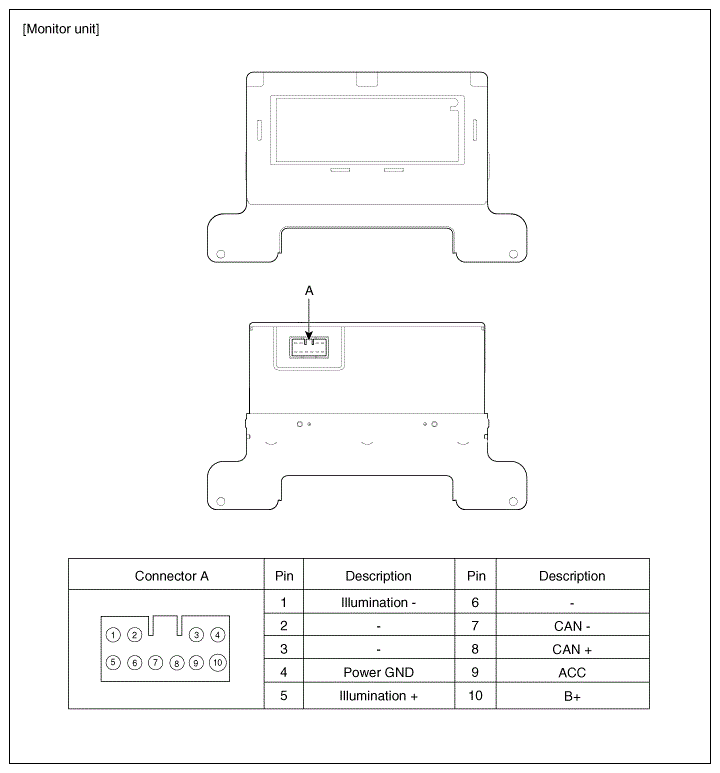

Fig 6: Identifying Monitor Unit Connector Terminals

Courtesy of HYUNDAI MOTOR AMERICA
