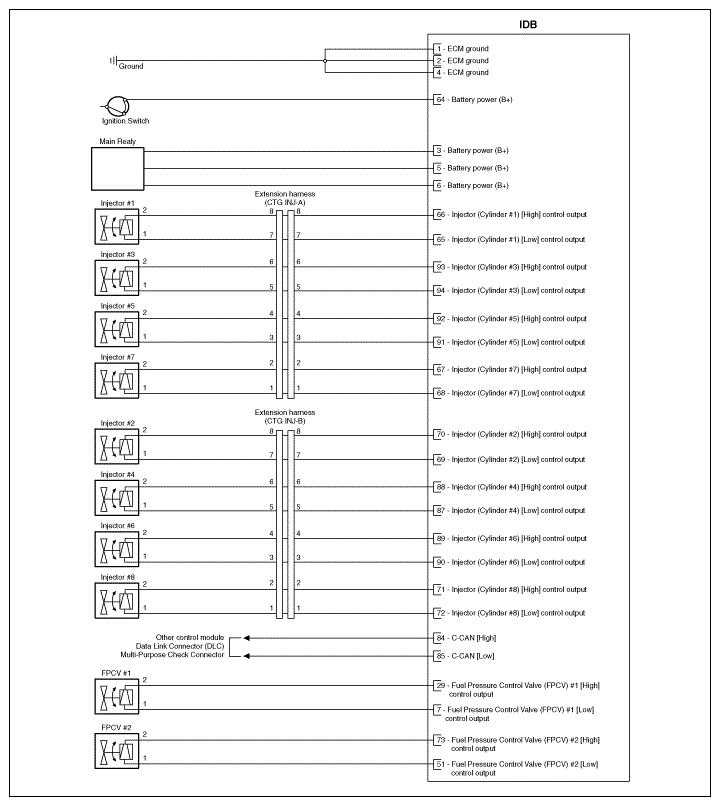

Home >> Hyundai >> 2012 >> Genesis 5.0 R-Spec >> Repair and Diagnosis (Single Page) >> Engine Performance >> Engine Control Systems >> Engine Control System - 5.0L >> Injector Drive Box (IDB) >> Schematic Diagrams >> Circuit Diagram
