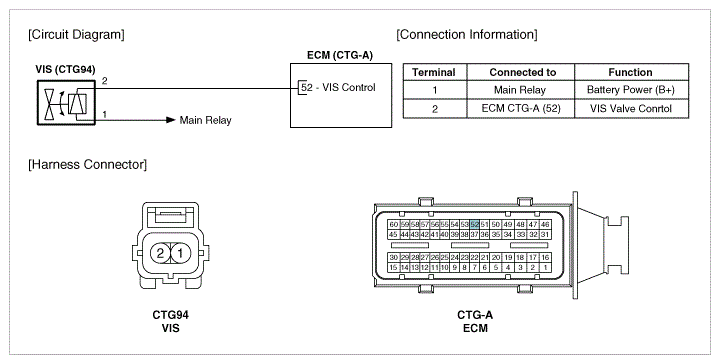

Home >> Hyundai >> 2012 >> Genesis 4.6 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 4.6L >> Variable Intake Solenoid (VIS) Valve >> Schematic Diagrams >> Circuit Diagram
