Repair procedures: Removal

  1. Remove the front bumper. (Refer to the FRONT BUMPER ).
  2. Remove the bolt and disconnect the horn connector, then remove the high pitch horn (B) and low pitch horn (A).

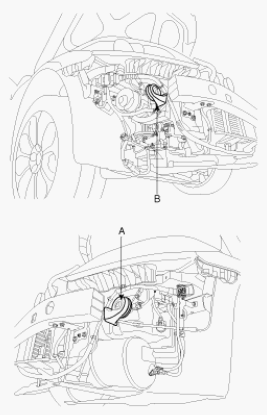

Fig 1: Identifying High And Low Pitch Horn
G08853293Courtesy of HYUNDAI MOTOR AMERICA
