Repair procedures: Inspection

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

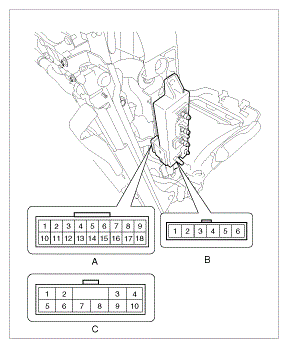

Fig 1: Identifying Power Seat Control Switch Connector

Courtesy of HYUNDAI MOTOR AMERICA

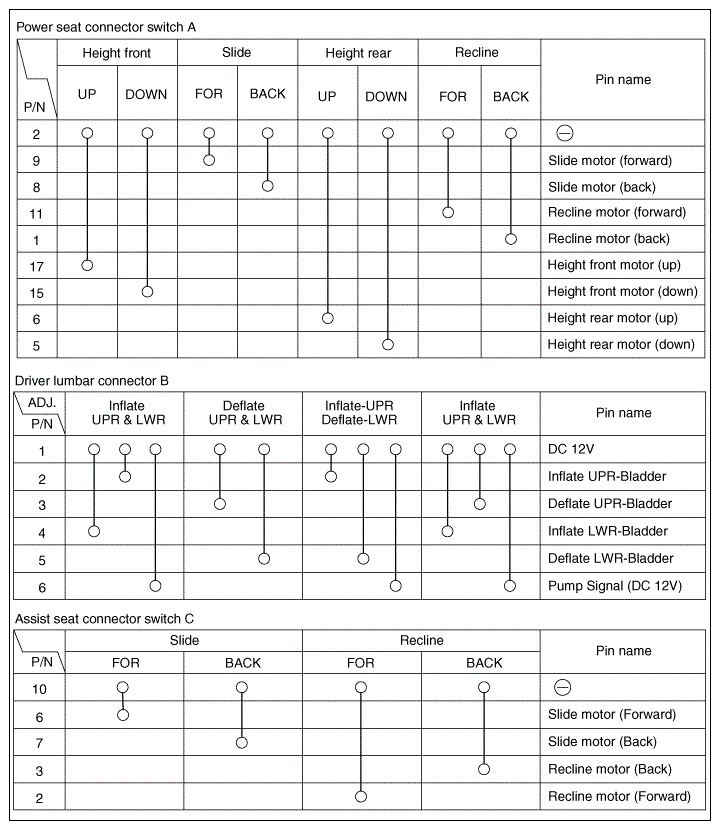

Fig 2: Power Seat Control Switch Continuity Reference Chart

Courtesy of HYUNDAI MOTOR AMERICA
