Components and Components Location: Components

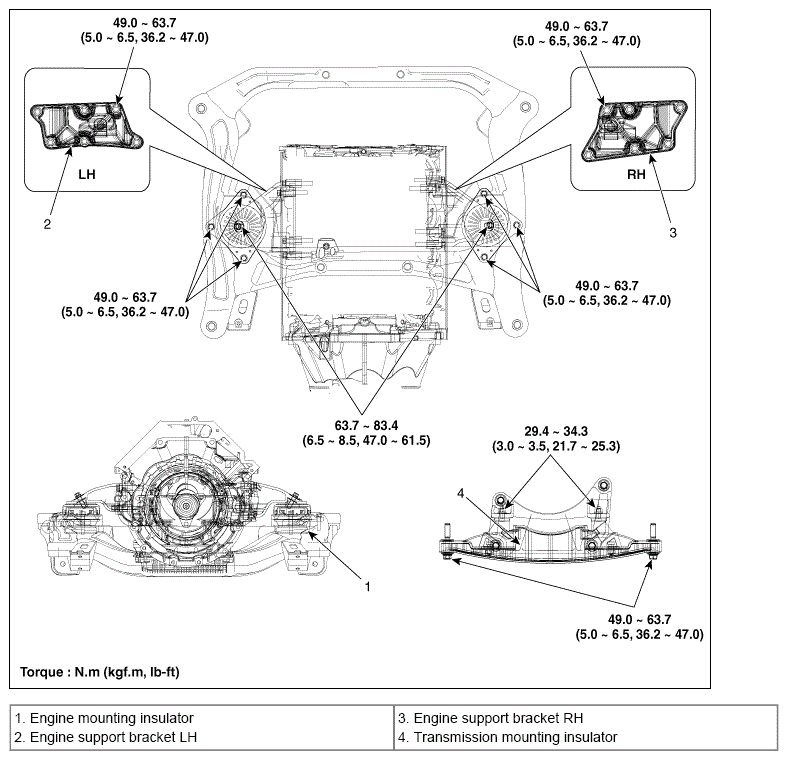

Fig 1: Engine Mounting Replacement Components With Torque Specifications

G08818562

Courtesy of HYUNDAI MOTOR AMERICA
