Components and Components Location: Components

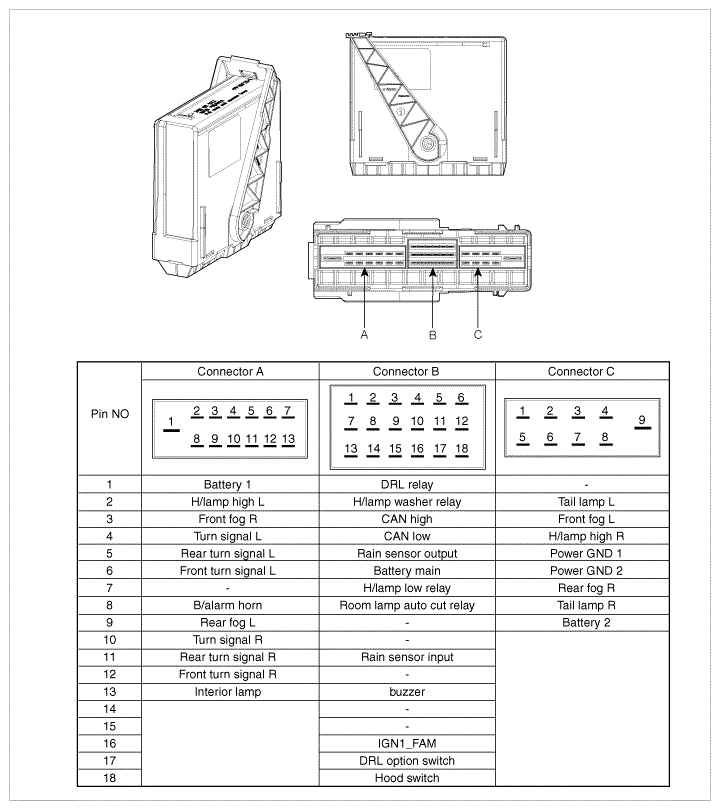

Fig 1: Identifying Front Area Module Connector Terminals

G08838904

Courtesy of HYUNDAI MOTOR AMERICA
