Guide Assembly Replacement

Remove the sunroof assembly.
Lower and slide the guide assembly (A) to the rear to remove.

Fig 1: Removing Sunroof Assembly
Courtesy of HYUNDAI MOTOR AMERICA

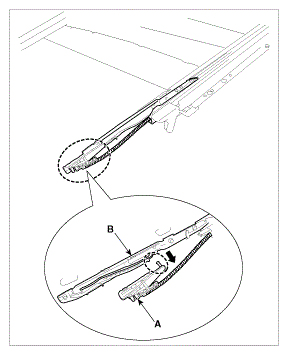

Remove the guide (A) and slide (B).

Fig 2: Removing Guide And Slide
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure to align the slide with the center of "A" and "B"
- Make sure to initialize the motor.
Fig 3: Identifying Aligning Center
Courtesy of HYUNDAI MOTOR AMERICA
