Chart 4

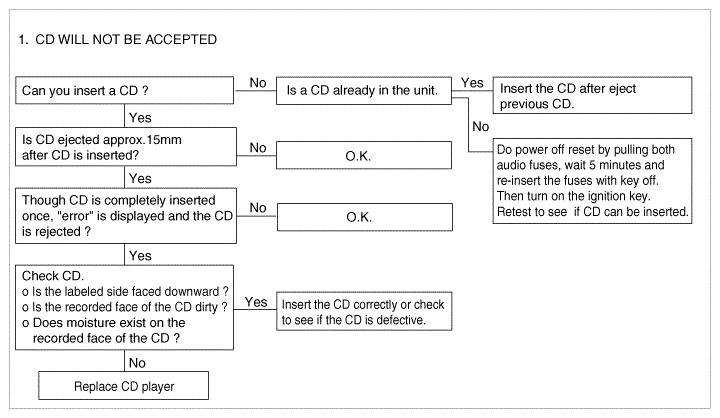

Fig 1: Body Electrical System Troubleshooting Flowchart (Chart 4, CD Will Not Be Accepted)

Courtesy of HYUNDAI MOTOR AMERICA

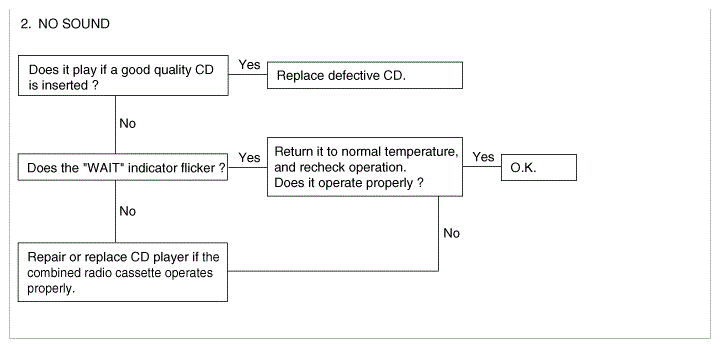

Fig 2: Body Electrical System Troubleshooting Flowchart (Chart 4, No Sound)

Courtesy of HYUNDAI MOTOR AMERICA

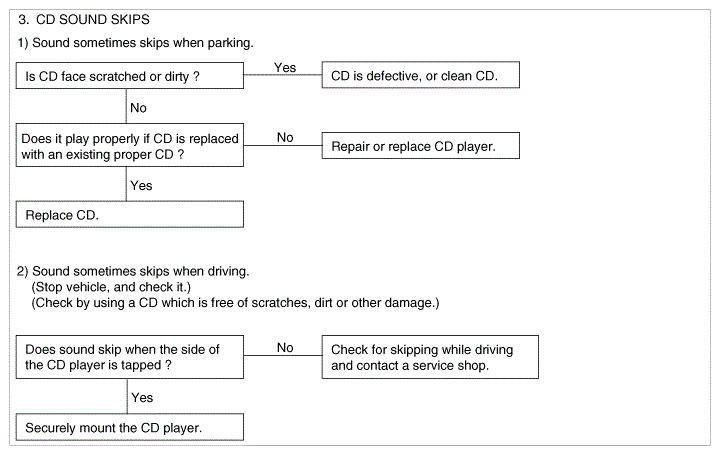

Fig 3: Body Electrical System Troubleshooting Flowchart (CD Sound Skips)

Courtesy of HYUNDAI MOTOR AMERICA

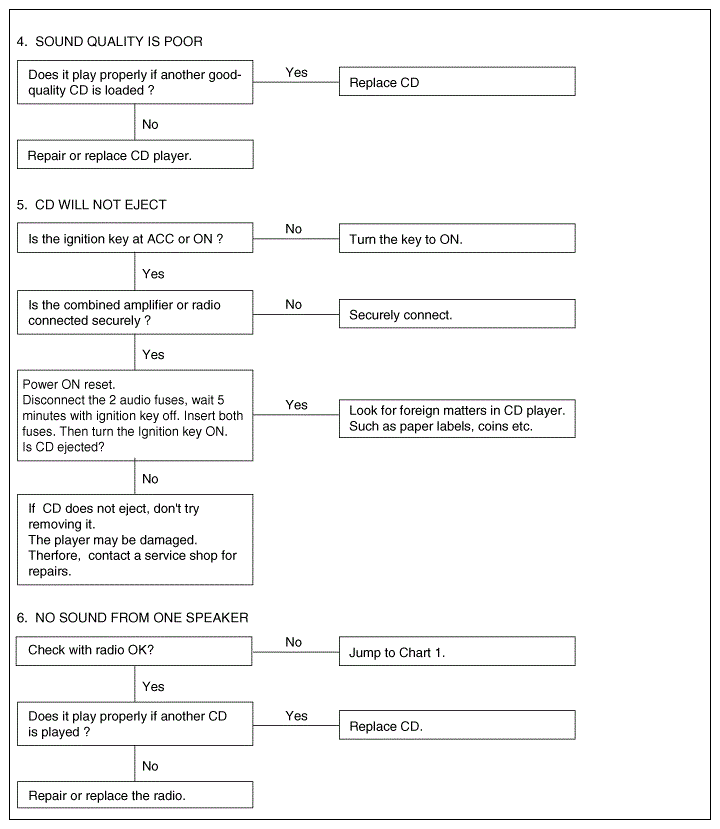

Fig 4: Body Electrical System Troubleshooting Flowchart (Sound Quality Is Poor)

Courtesy of HYUNDAI MOTOR AMERICA
