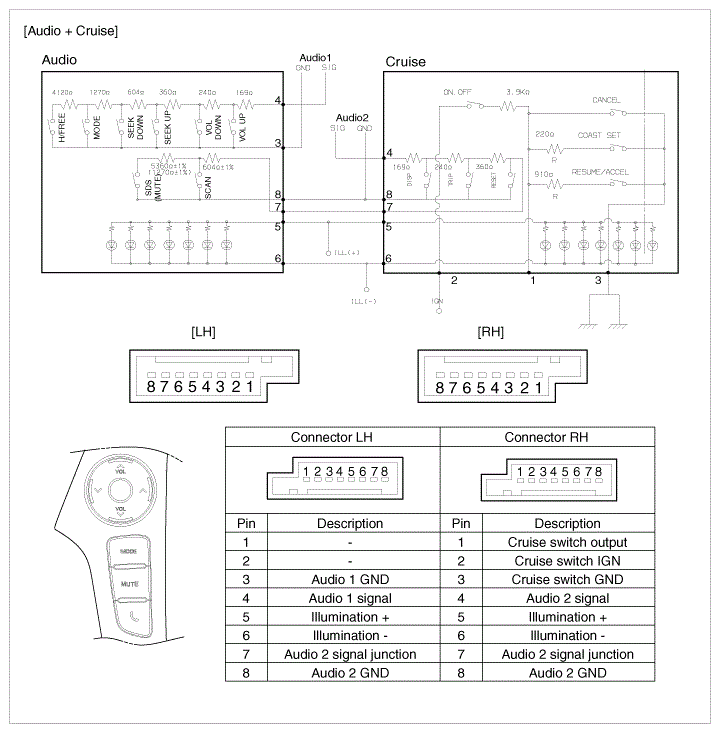

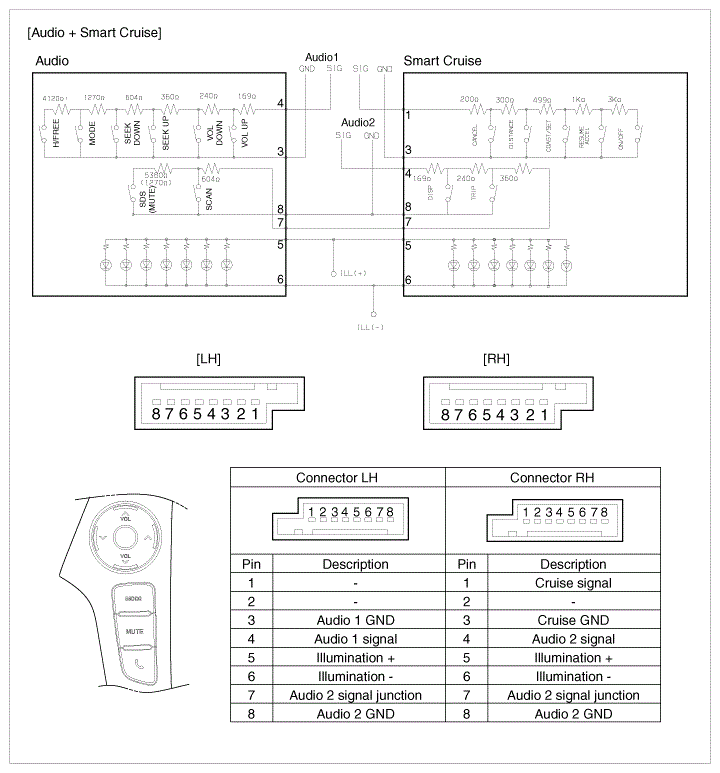

Home >> Hyundai >> 2012 >> Genesis 3.8 >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Audio System >> Audio Remote Control >> Schematic Diagrams >> Circuit Diagram >> Steering Wheel Remote Control
