Switch Diagnosis
- Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
- Select the vehicle model and then "IPM" system.
- Select the "IPM + PIC".
- After IG ON, select the "Input/output monitoring".

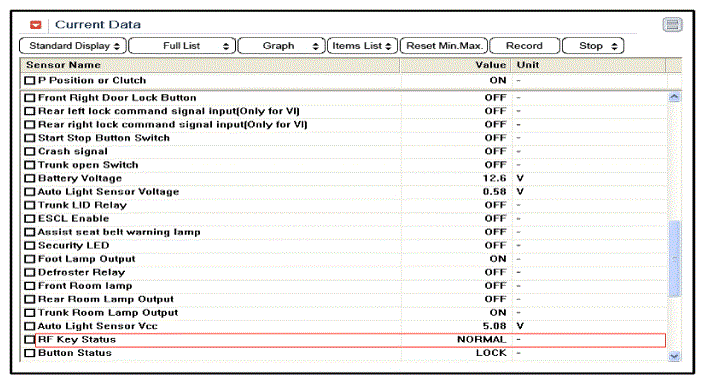

- You can see the situation of each switch on scanner after connecting the "Input/output monitoring" process.
