Component Location (1)

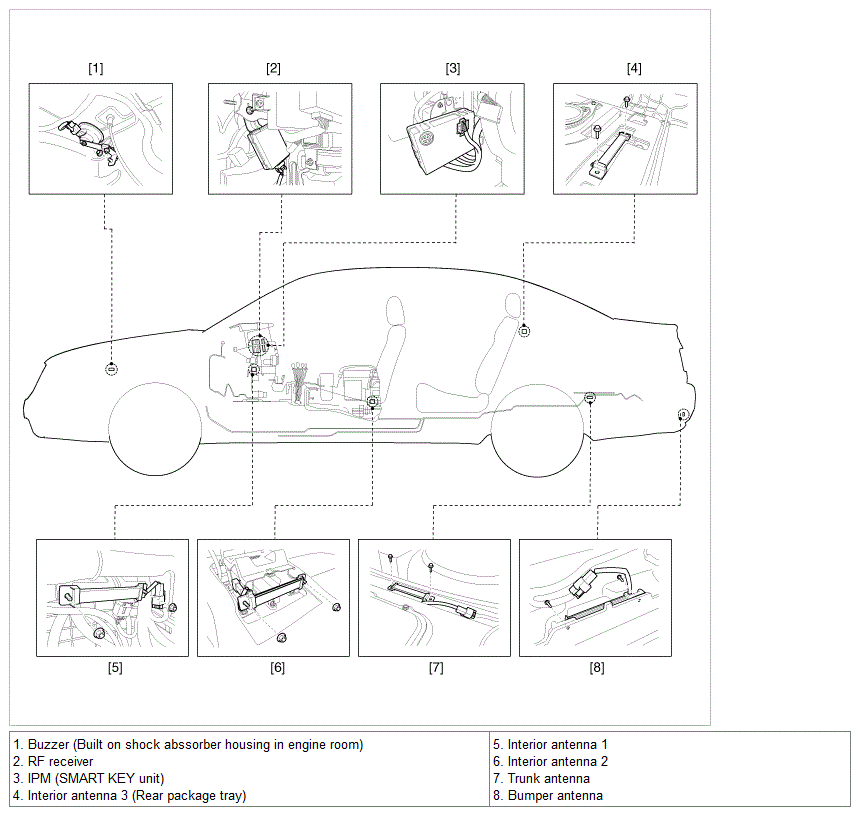

Fig 1: Smart Key System Components Location (1 Of 2)
G08831240Courtesy of HYUNDAI MOTOR AMERICA
